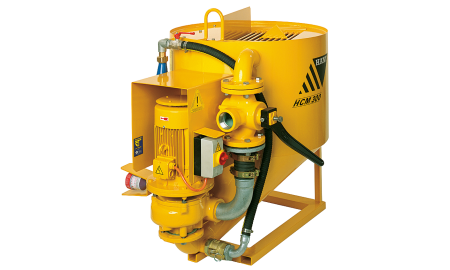

HCM High Shear mixers (colloidal mixers) for Cement, ultra-fine Cement, Bentonite and other admixtures.

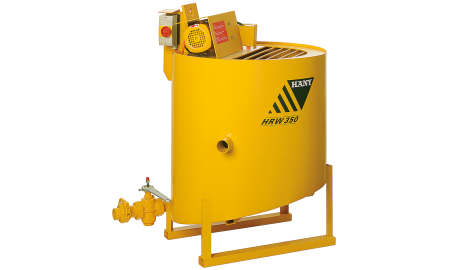

The HRW agitators are used as holding tanks between the HCM batch mixers and the pump.

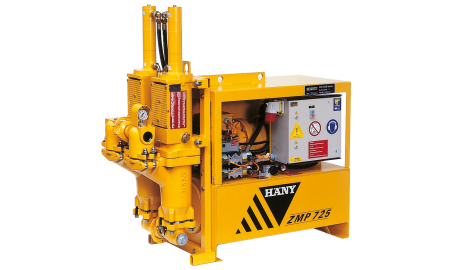

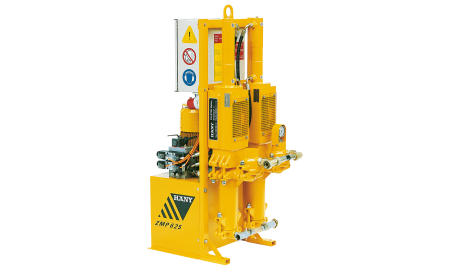

Häny low-wear plunger type grout pumps are available as single or double acting units.

Häny low-wear plunger type grout pumps are available as single or double acting units.

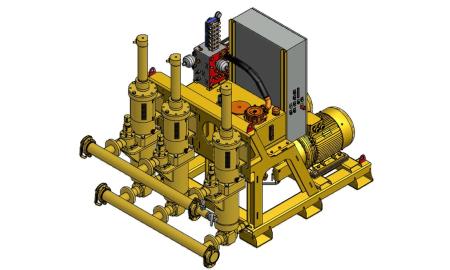

The ZMP 900 Series is based on Haeny’s extremely reliable plunger pump design. The highly tuned hydraulic system together with the triple pump setup guarantees a virtually pulsation free grout flow. - High and low pressure grouting - Long distance pumping - up to 10 km - Automatic Pressure Control System APC - Low wear plunger system - 3 Different plunger sizes for one pump type - Pressures up to 100 bar - Output up to 60 m3/hr - Particle size up to 8 mm Models: >ZMP 936

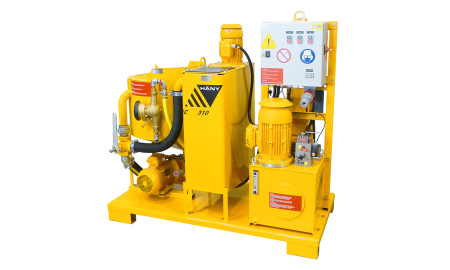

The INJECTO-COMPACT (IC) grout plants consist of a HCM High Shear Mixer, a HRW Agitator and a ZMP Grout Pump. - Suitable for all grouting applications with cement and ultra fine cement - Grouting of anchors, soil nails, tension cables as well as for sleeve pipe, rock, and contact injections - Bentonite suspensions for microtunnelling, pipe jacking and directional drilling - Ergonomic, space saving - Central lifting position - The components can easily be detached from the unit for individual use - Output up to 2m³ Models: > IC 310 > IC 311 > IC 325

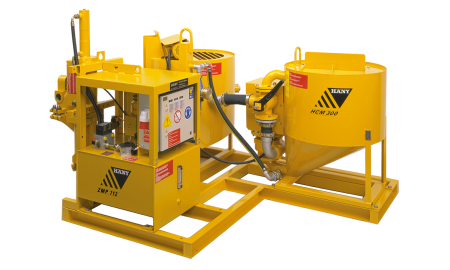

The INJECTO-COMPACT (IC) grout plants consist of a HCM High Shear Mixer, a HRW Agitator and a ZMP Grout Pump. - Suitable for all grouting applications with cement and ultra fine cement - Grouting of anchors, soil nails, tension cables as well as for sleeve pipe, rock, and contact injections - Bentonite suspensions for microtunnelling, pipe jacking and directional drilling - Ergonomic, space saving - Central lifting position - The components can easily be detached from the unit for individual use - Output up to 5m Models: > IC 650/710 > IC 650/712 > IC 650/725

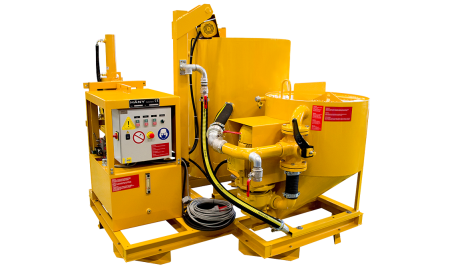

The INJECTO-COMPACT (IC) grout plants consist of a HCM High Shear Mixer, a HRW Agitator and a ZMP Grout Pump. - Suitable for all grouting applications with cement and ultra fine cement - Grouting of anchors, soil nails, tension cables as well as for sleeve pipe, rock, and contact injections - Bentonite suspensions for microtunnelling, pipe jacking and directional drilling - Ergonomic, space saving - Central lifting position - The components can easily be detached from the unit for individual use - Output up to 5m³ Models: > IC 1100/710 > IC 1100/712 > IC 1100/725

The INJECTO-COMPACT (IC) grout plants consist of a HCM High Shear Mixer, a HRW Agitator and a ZMP Grout Pump.

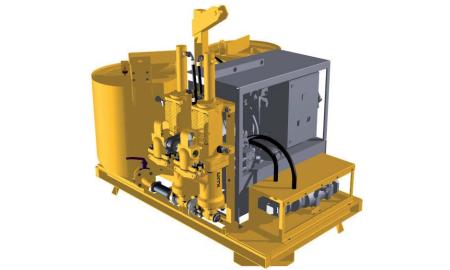

Standard grout plant combined with liquid additive dosing pump. Plant is specially designed with BASF for 2 component grout injection. The dosing pump is driven by a hydraulic motor coupled with the hydraulic system of the grout pump in order to always maintain the same ratio between component A (grout) and component B (additive) independent of the output of the grout pump. The exact ratio grout/additive can be adjusted on the variable speed gear box of the dosing pump. The dosing pump can be switched on and off separately. This enables the use of this special grouting unit in conventional mode for cementitious grout without any additive.

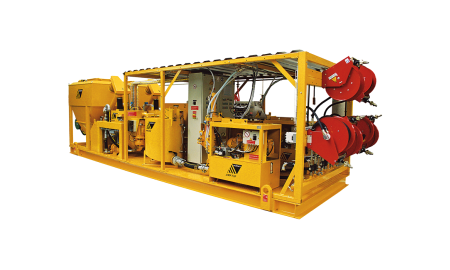

The systems are suited for preparing and injecting all common cement, bentonite, microfine binders and mortar mixtures. Thanks to the excellent mixing performance of the Häny turbomixers, these systems are also excellent for preparing and conveying bentonite and polymer suspensions for piping and microtunnel excavations.

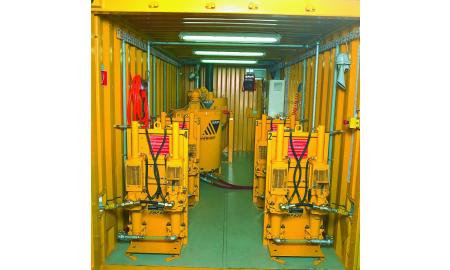

Häny’s range of portable MCM mixing plants are suitable for mixing bentonite, fly ash, cement, filler, clay and similar suspensions for diaphragm walls, slurry walls, jet grouting and all types of grouting projects.
