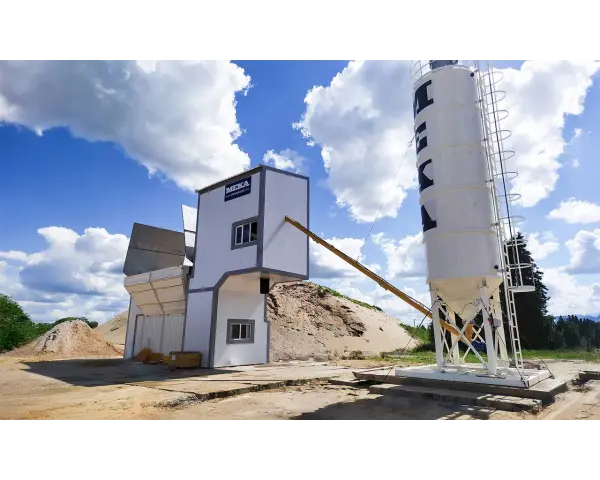

The C30 Compact Concrete Batching Plant, the smallest model in the Compact Concrete Batching Plant series, distinguishes itself with a production capacity of 30 m³/h, a compact design, and minimal installation space requirements. Its compact structure also makes it ideal for containerized transportation.
The ultra-compact C30 Compact Concrete Batching Plant, designed by MEKA’s globally renowned R&D team, is optimized for maximum efficiency in very confined production areas. Transportable in a 40' open-top container, the C30 ensures uninterrupted production with its 0.5 m³ capacity pan or single-shaft mixer.
Key features include minimal site requirements for low-volume concrete production and a structure that allows installation directly at ground level. Additionally, the plant can be operational in a remarkably short time upon arrival at the installation site. Pre-wired electricity, water, and pneumatic lines at MEKA’s factory streamline the installation and commissioning process, ensuring quick and hassle-free setup.
|
Technical Specifications – C30 |
|
|
Compacted Concrete Output (Mixing time: 30 / 20 sec) |
30 m³/h |
|
Mixer Capacity (Compacted concrete) |
0.5 m³ / cycle |
|
Mixer Type |
Pan / Single Shaft / Planetary |
|
Mixer Motor Power |
18.5 kW |
|
Aggregate Bins |
4x 7 m³ / CT (Cross Type) |
|
Aggregate Feeding |
Ramp or Pre-Feeding System |
|
Aggregate Transfer |
Skip Hoist |
|
Air Compressor |
Piston Type, 4 kW |
|
Cement Weighing Hopper |
300 kg |
|
Water Weighing Hopper |
160 kg |
|
Additive Weighing Hopper |
25 kg |
|
Cement Screw Conveyor |
Ø 193x11.500 mm |
