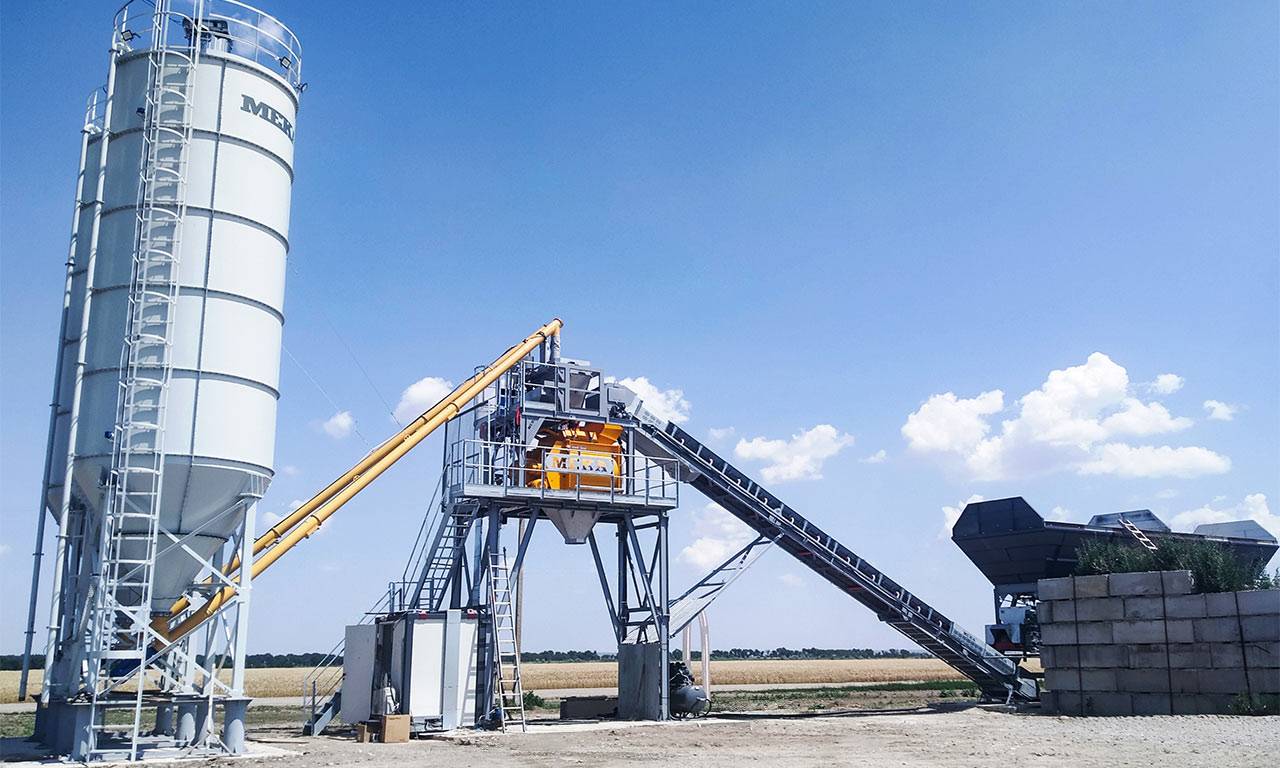

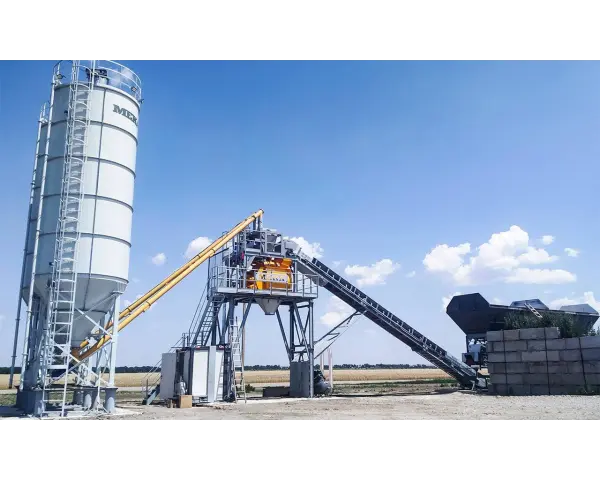

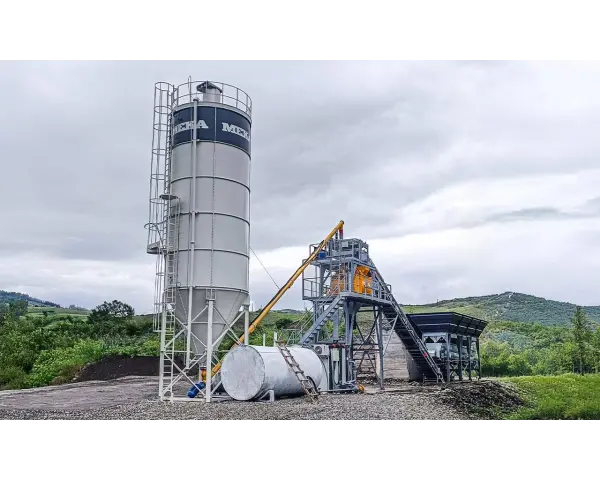

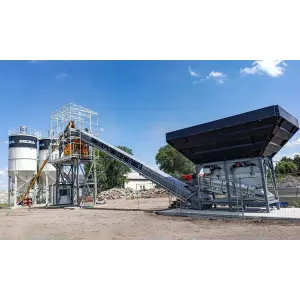

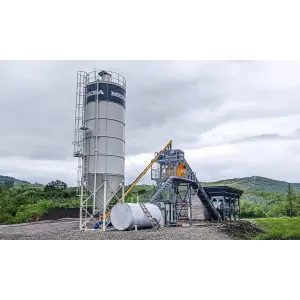

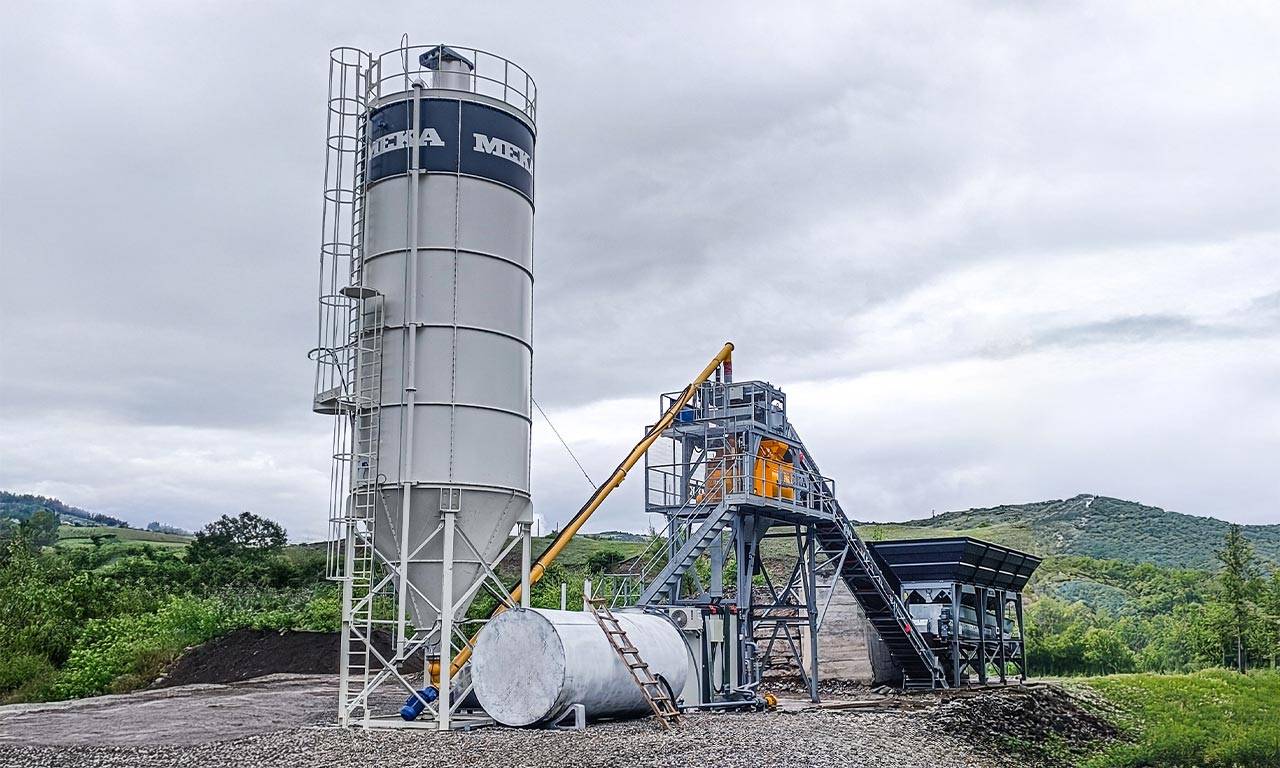

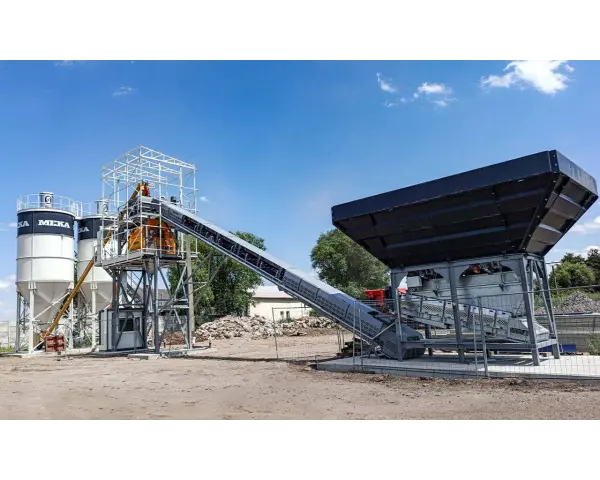

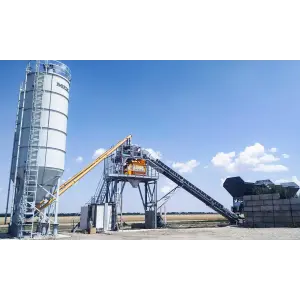

The C60 B Belt Type Compact Concrete Batching Plant, featuring a production capacity of 60 m³/h, is equipped with a sergeant-type conveyor belt system that minimizes space requirements and allows for installation directly at ground level. Its compact design also makes it ideal for containerized transportation.
The C60 B Compact Concrete Batching Plant, with its sergeant-type transfer belt structure, requires a relatively small installation area and can be transported using 40' open-top containers.
Equipped with a 1.0 m³ capacity MEKA twin-shaft mixer, the C60 B ensures uninterrupted production while offering low operating and maintenance costs. It provides versatility with two aggregate bunker options: 4x10 square type or 4x20 in-line type.
Designed for maximum efficiency and constructed with top-quality components, the C60 B can be installed directly on ground level without the need for additional concrete foundation piers. Pre-wired electricity, water, and pneumatic lines prepared at MEKA’s factories enable rapid installation, allowing the plant to begin concrete production quickly upon arrival at the site.
|
Technical Specifications С60-B |
|
|
Compacted Concrete Output (Mixing time: 30 / 20 sec) |
60 m³/h |
|
Mixer Capacity (Compacted Concrete) |
1,0 m³ / Cycle |
|
Mixer Type |
Twin Shaft |
|
Mixer Motor Power |
2х 18,5 kW |
|
Aggregate Bins |
4x 20 m³ ³ / IT (Inline Type) 4x 10 m³ / CT (Cross Type) |
|
Aggregate Feeding |
Ramp or Pre-Feeding System |
|
Aggregate Transfer |
Belt |
|
Air Compressor |
Piston Type (5,5 kW) |
|
Cement Weighing Hopper |
700 kg |
|
Water Weighing Hopper |
250 kg |
|
Additive Weighing Hopper |
25 kg |
|
Cement Screw Conveyor |
Ø 219x13.000 mm |
