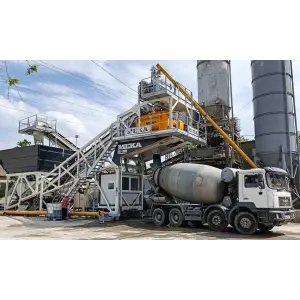

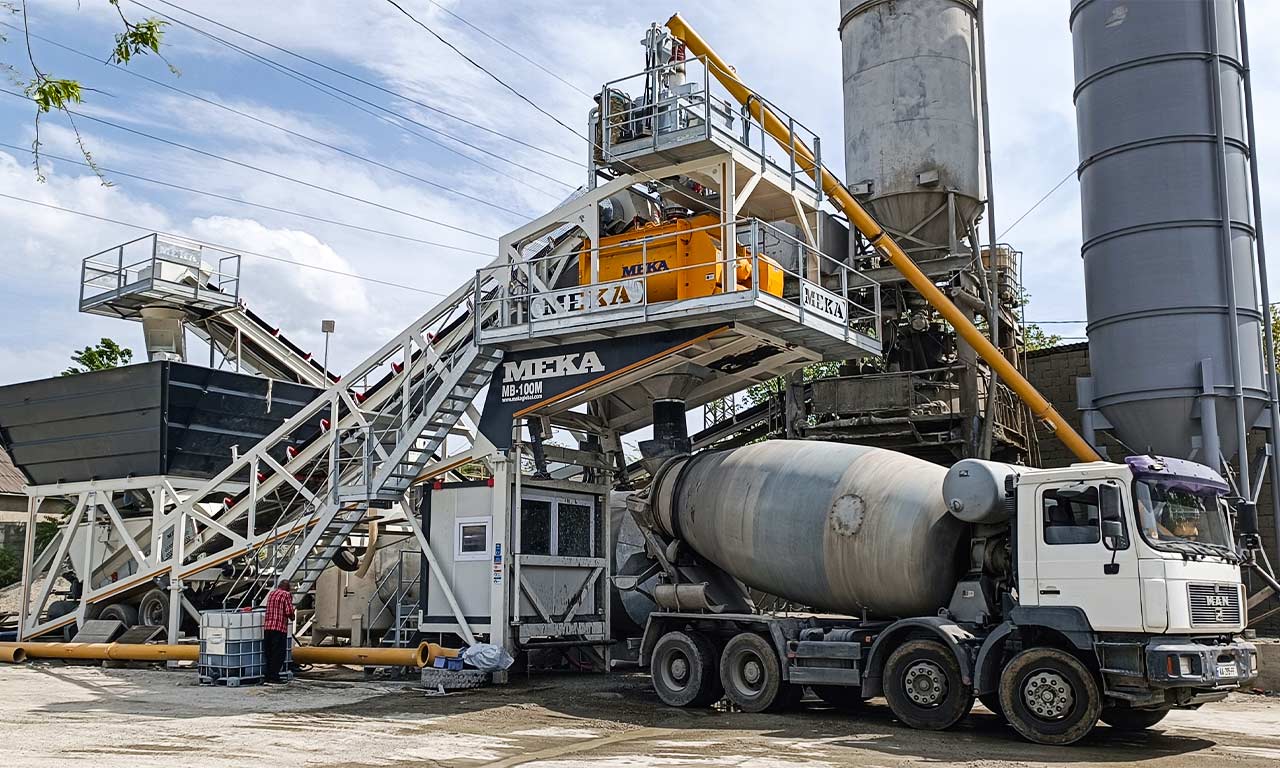

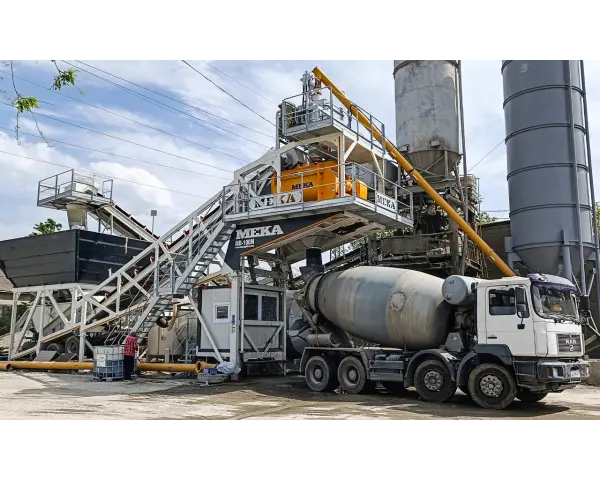

The M100 Mobile Concrete Batching Plant is the most preferred model in its range. With a production capacity of 100 m³/hour, it offers easy and fast installation, a small footprint, and high performance, setting it apart from its competitors.
The M100 Mobile Concrete Batching Plant offers high production performance with its 2.25 m³ capacity MEKA twin-shaft mixer and provides significant advantages with low operating and maintenance costs.

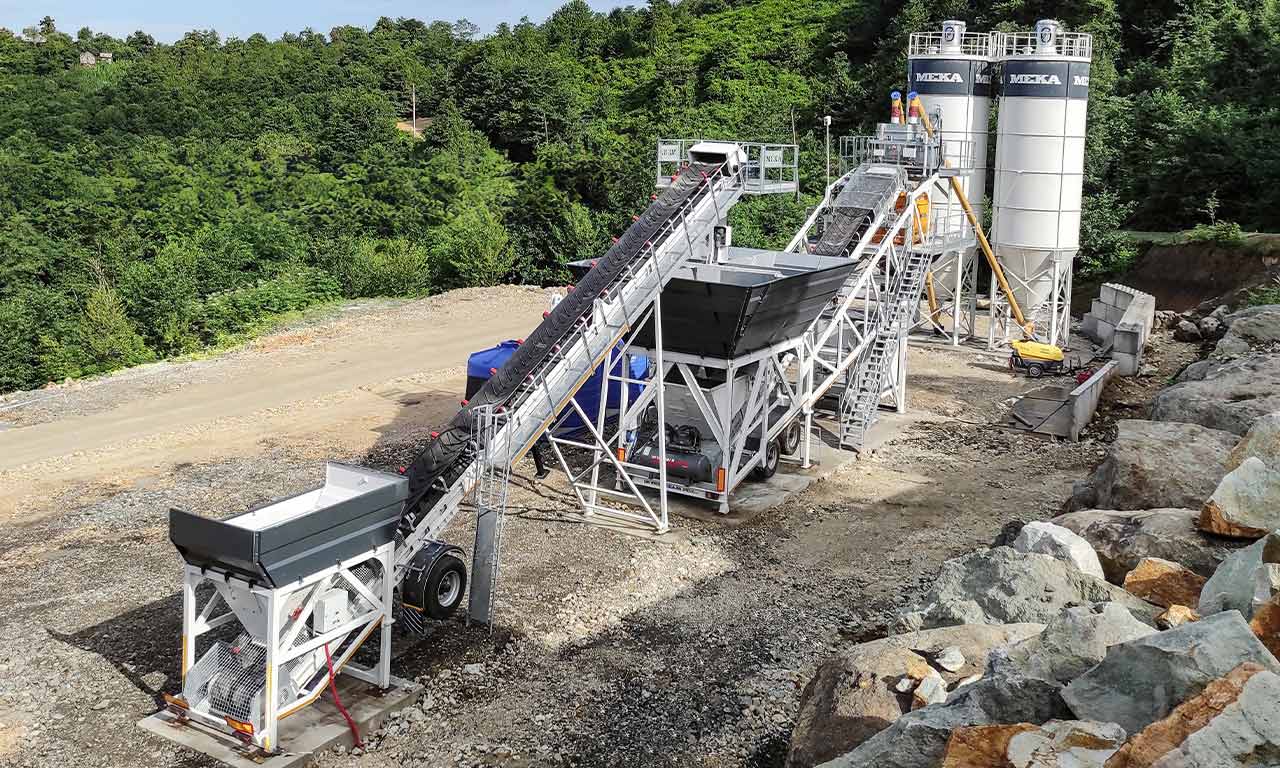

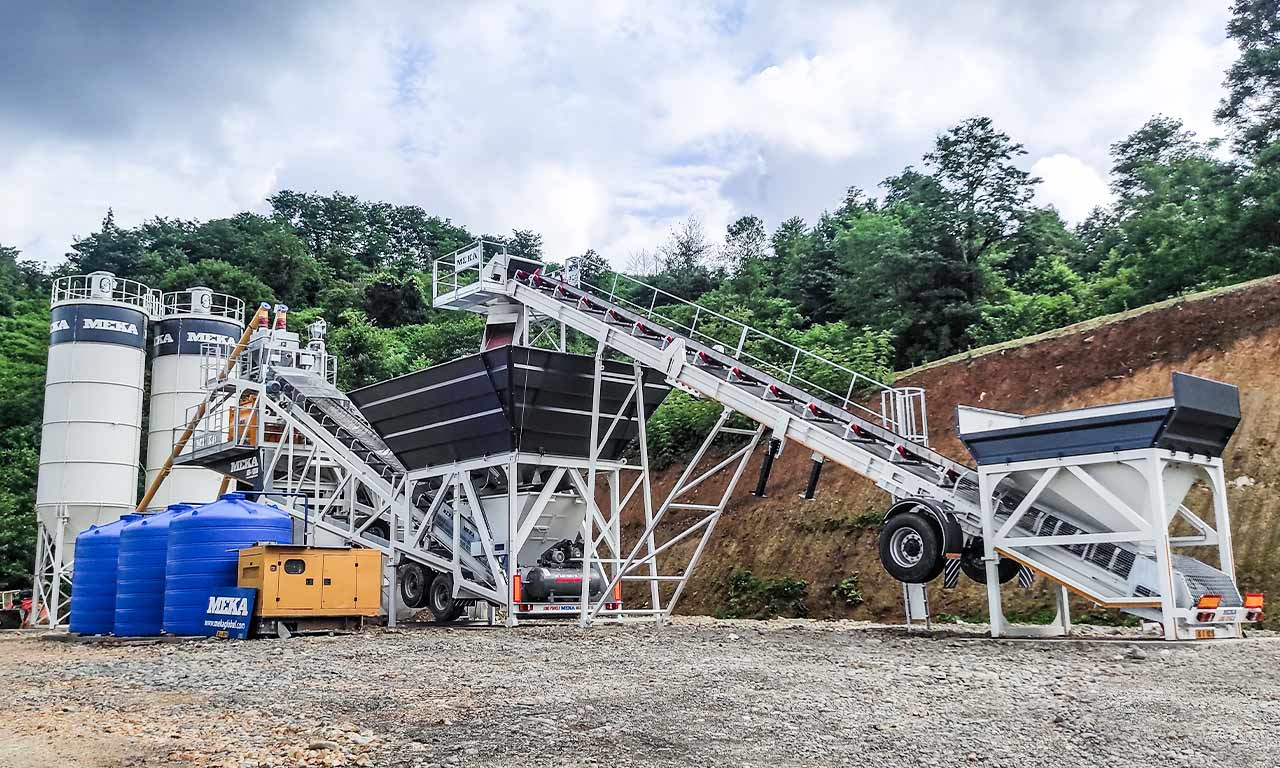

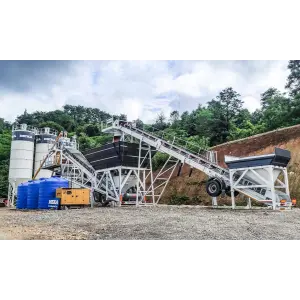

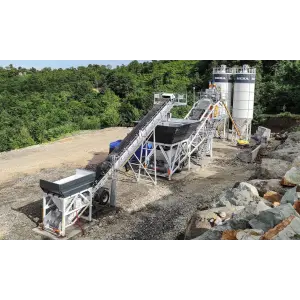

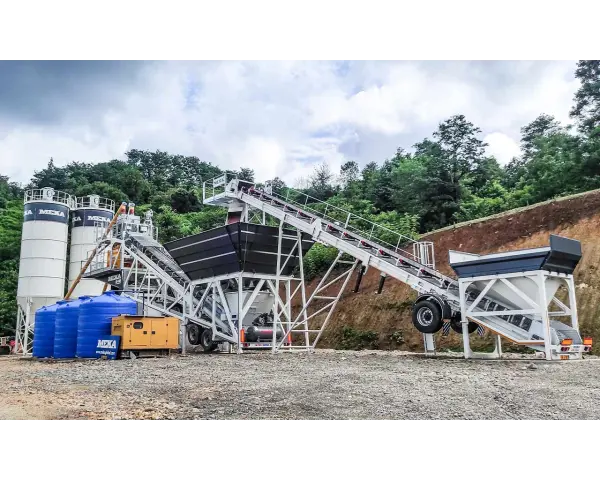

All units are efficiently positioned on a mobile chassis with axles and wheels at the rear, allowing the plant to be towed and transported with a single standard truck tractor. The M100 features 4x 15 m³ square aggregate bins, and the aggregate is fed via the loading ramp or Aggregate Pre-Feeding Systems.
It can be installed on a flat concrete floor in a short time and easily disassembled for quick relocation to a new project site. Electrical, water, and pneumatic lines are pre-installed in MEKA factories, reducing installation and commissioning time on-site.
The M100 requires less installation space compared to stationary concrete batching plants, making it easier to obtain installation permits. All weighing groups are hot-dip galvanized, ensuring long-lasting durability for the plant.
|
Technical Specifications M100 |
|
|
Compacted Concrete Output |
100 m³/h |
|
Mixer Capacity (Compacted Concrete) |
2,25 m³ / Cycle |
|
Mixer Type |
TS (Twin Shaft) |
|
Mixer Motor Power |
2x 37 kW |
|
Aggregate Bins |
4x 15 m³ / CT (Cross Type) |
|
Aggregate Feeding |
Ramp or Pre-Feeding System |
|
Aggregate Transfer |
Belt |
|
Air Compressor |
Piston Type (7,5 kW) |
|
Cement Weighing Hopper |
1.350 kg |
|
Water Weighing Hopper |
620 kg |
|
Additive Weighing Hopper |
25 kg |
|
Cement Screw Conveyor |
Ø 273 x 15.000 mm |
