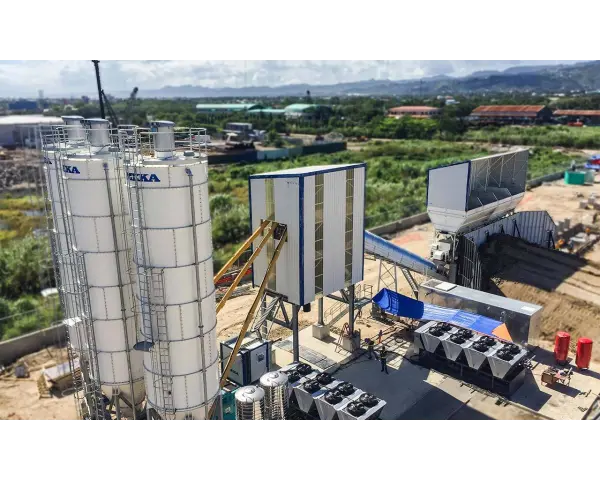

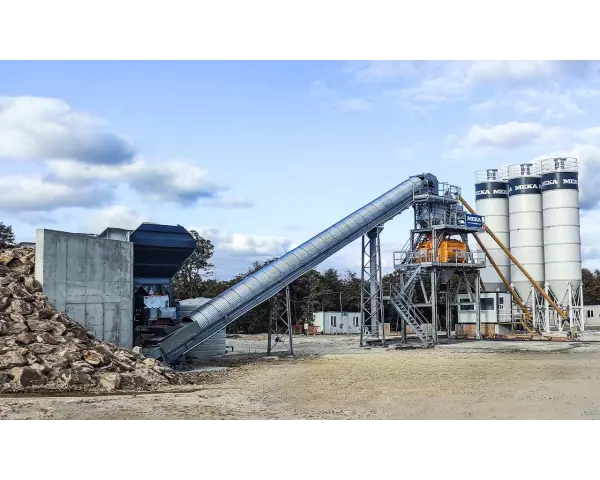

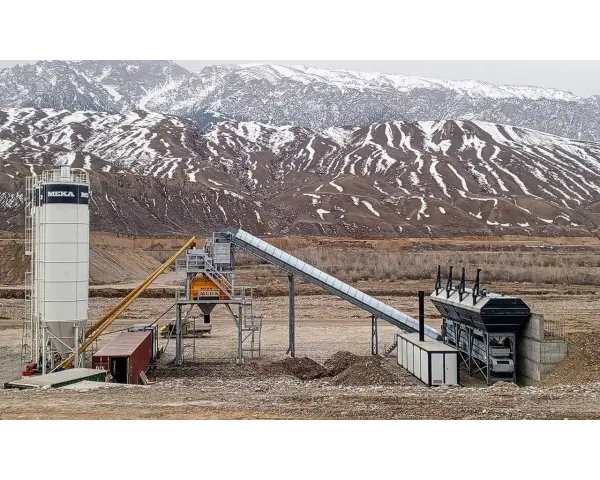

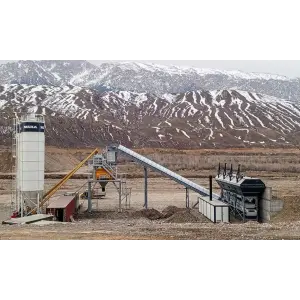

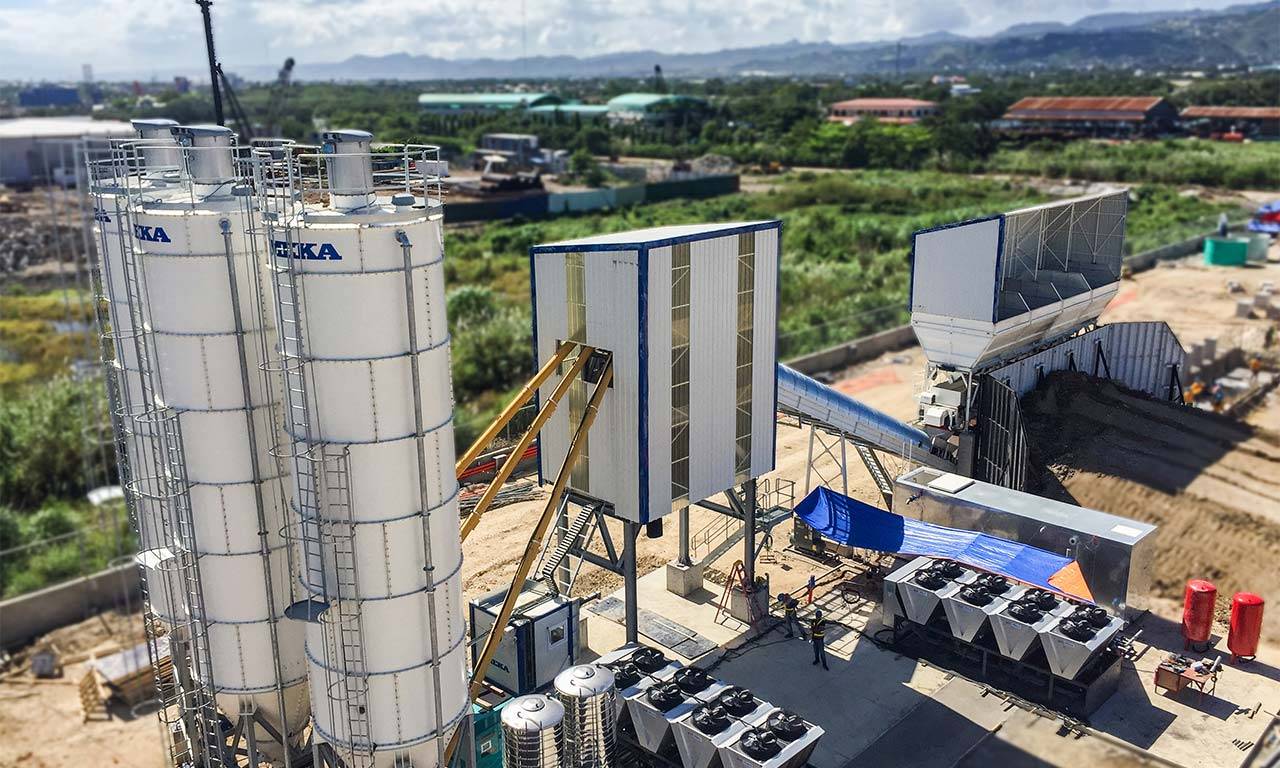

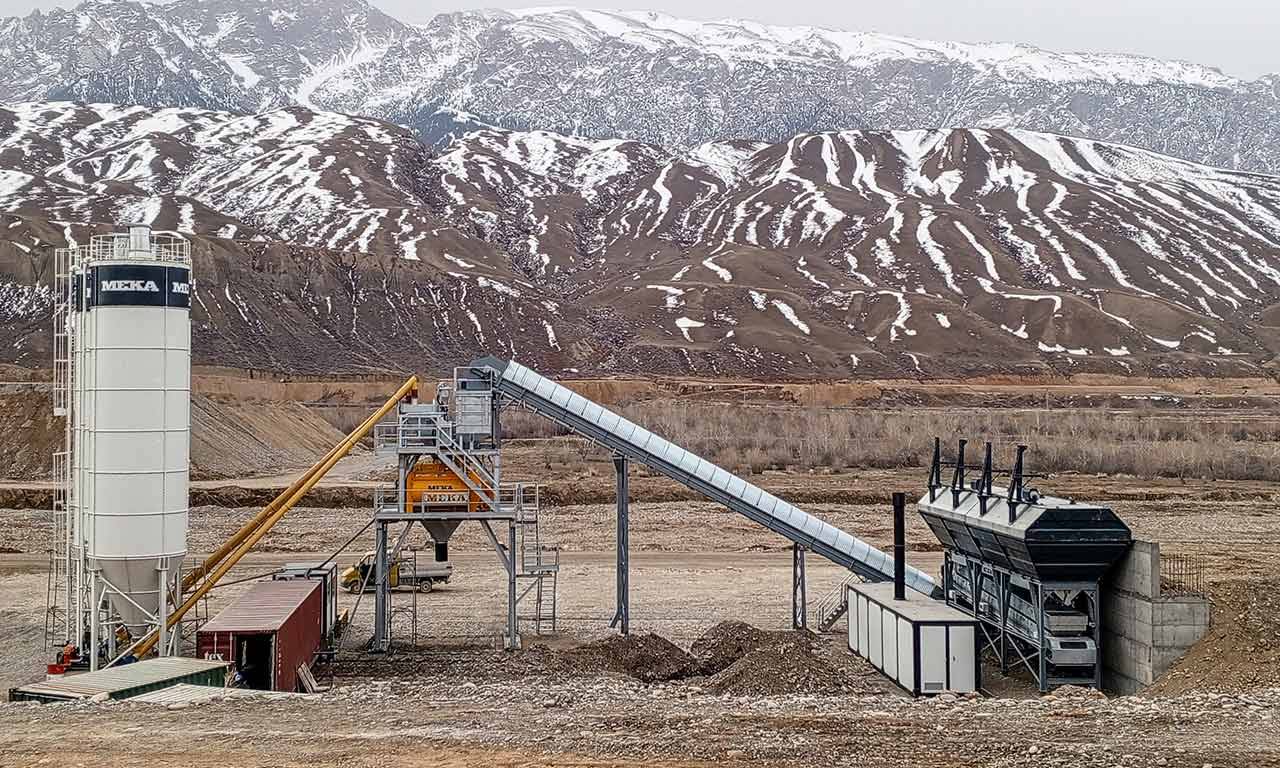

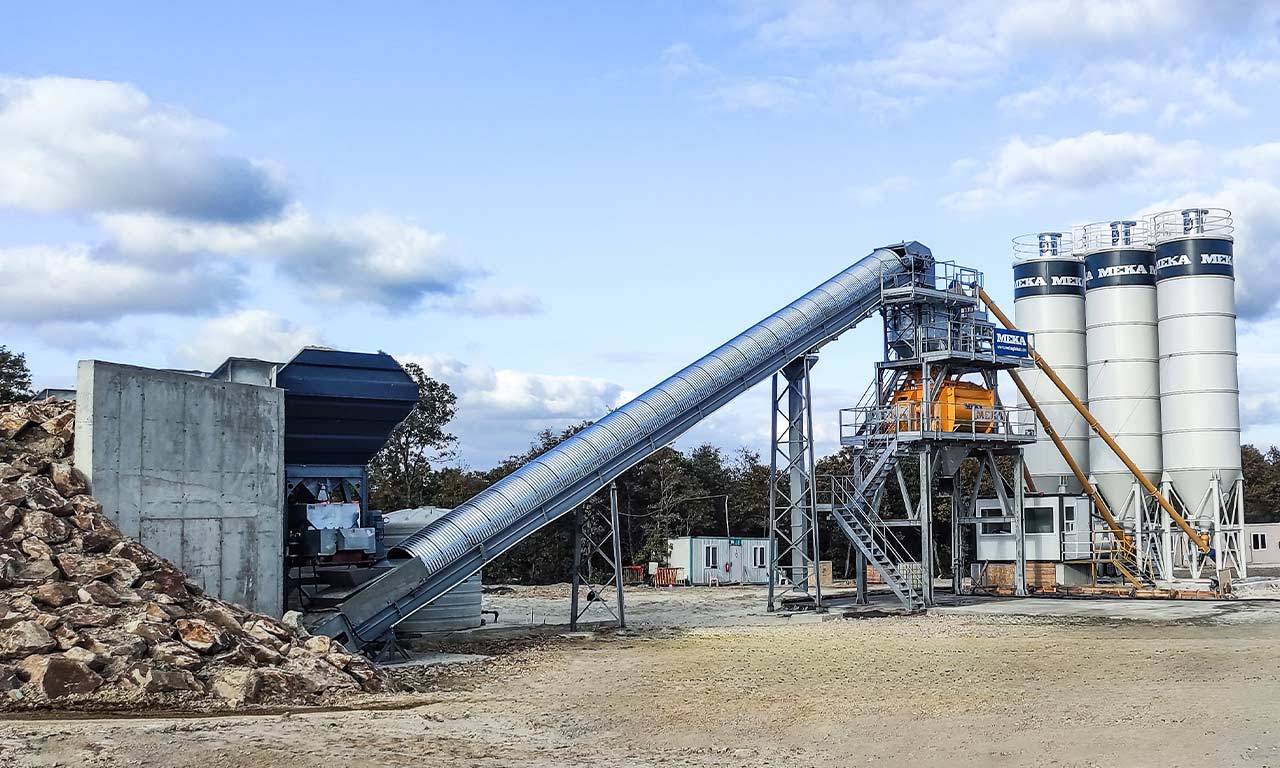

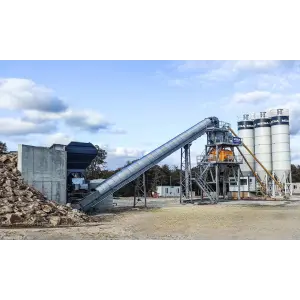

The K145 Stationary Concrete Batching Plant offers professional power and premium quality, meeting all your concrete production needs—whether ready-mixed concrete, RCC, or precast concrete—through uninterrupted, high-capacity performance even under demanding working conditions.
The K145 Stationary Concrete Batching Plant, with its compact design that can be transported using a 40' Open Top (OT) container, eliminates transportation challenges while offering both installation and cost advantages.
Equipped with the highest level of hot-dip galvanized plant components, all units—except for the mixer—are made from hot-dip galvanized materials as standard, ensuring a much longer-lasting investment.
Whether for ready-mixed concrete, roller compacted concrete (RCC), or precast concrete, the K145, with its 3.33 m³ capacity MEKA twin-shaft mixer, delivers exceptional productivity and provides a significant business advantage to its investors.
Designed to meet the demands of mass concrete production, the standard aggregate waiting hopper on the K145 maximizes productivity and profitability for ready-mixed concrete producers and large project contractors.
|
Technical Specifications K145 |
|
|
Compacted Concrete Output (Mixing Time : 30 seconds/ 20 seconds) |
130-147 m³/h |
|
Mixer Capacity (Compacted Concrete) |
3,33 m³ / Cycle |
|
Mixer Type |
TS (Twin Shaft) |
|
Mixer Motor Power |
2x55 kW |
|
Aggregate Bins |
4x 25 m³ / IT (Inline Type) 4x 35 m³ / IT (Inline Type) |
|
Aggregate Feeding |
Ramp or Pre-Feeding System |
|
Aggregate Transfer |
Belt |
|
Air Compressor |
Piston Type (7,5 kW) |
|
Cement Weighing Hopper |
1.700 kg |
|
Water Weighing Hopper |
1.000 kg |
|
Additive Weighing Hopper |
40 kg |
|
Cement Screw Conveyor |
Ø 273 x 15.000 mm |
