Key Features
- Versatile use on job sites, whether operating in low buildings, concreting ceilings, working on base plates, etc.
- High load thanks to weight reserves
- All information on the radio remote control display. Complete control and all the information at the workplace at all times
- Robust and stable due to reinforced base structure, compact boom pedestal, boom line installation, etc.
- Work efficiently thanks to logical, sophisticated ergonomics and intuitive, simple operation of the Ergonic® 2.0 control system
- Maintenance- and service-friendly as a result of its optimum accessibility and consistent screw concept
- Smoother, more flexible 4-arm placing boom with Z fold system, lower unfolding height and optimum slip characteristics
- Low support widths thanks to flexible support and space-saving structures (optional)
- Lower service costs thanks to maintenance-free components, fewer different types of components (e.g. only three standard elbow types) and smaller quantities of functional fluids

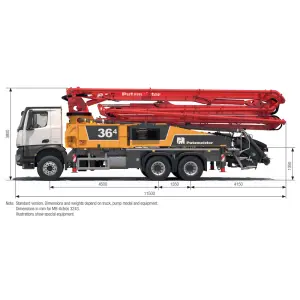

General Information
| Number of sections | 4 |
| Boom Style | Z-Folding |
| Vertical Reach | 35.6 m |
| Horizontal Reach | 31.4 m |
| Reach from Front of Truck | 28.9 m |
| Reach Depth | 23.1 m |
| Unfolding Height | 8.5 m |
| End Hose Length max. | 4 m |
| Delivery Line (DN + Pressure) | DN 125/5.5 mm/bar |
| Support width Standard (front-rear) | 5.5/7.2 m |
| Support width OSS (front-rear) | 4.0/5.9 m |
| Support width ESC (front-rear) | 4.0/5.1 m |
Concrete Pump Configuration .16 H
| Material Cylinder Diameter-Stroke Length | 230/2100 mm |
| Output (rod side) | 160 m³/hr |
| Delivery Pressure (rod side) | 85 bar |
| Strokes (rod side) | 31 |
