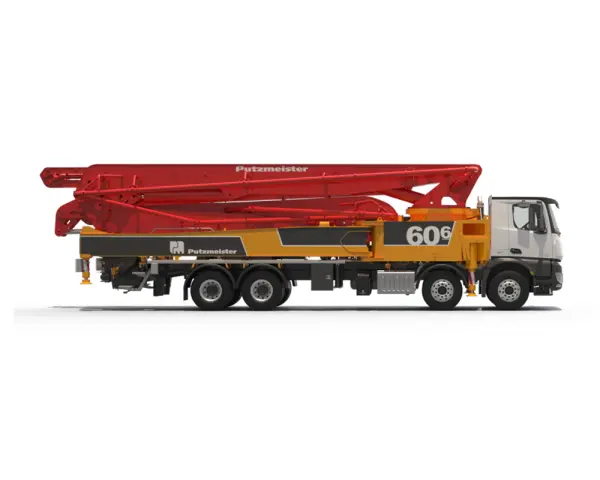

Putzmeister BSF 60-6.16 H
Putzmeister
Manufacturer: Putzmeister

Conquer the 60 metre class – More scope with lower weight Ideal for applications to pour concrete such as: Large construction sites, flat blocks and infrastructure projects Particularly for markets with low approval requirements - total weight under 48t, making 4-axle vehicles in the 60 metre class…

Key Features
  • Small support width with flexible support, space-saving structure
  • Continuous delivery line with nominal diameter of DN 125
  • Robust and steady thanks to reinforced substructure, compact boom pedestal and TRDI support
  • Putzmeister hydraulic circuit and the latest core pump technology for maximum efficiency and up to 45 % oil saving
  • Lower service costs with maintenance-free components and smaller quantities of operating fluids, consumables, etc.
  • All information on the display of the remote control. Complete control and all the information at the workplace at all times
  • Lower weight with TRDI support structure compared to the M63 or M62 with TRDV support – (with 4 axles < 46 t, alternatively on 5 axles < 47 t)
  • 6-arm placing boom with RZR-folding with maximum flexibility, thanks to 205° rotation angle at the last hinge
  • Intuitive operation thanks to Ergonic® 2.0
General Information
Arms 6
Folding Type RZR
Vertical Reach 59.2 m
Horizontal Reach gross 54.2 m
Reach Depth 44.1 m
Unfolding Height 13 m
Slewing Range 365 degree
End Hose - Length 3 m
Delivery Line (DN, Pressure) 125/85 mm/bar
Support width Standard (front-rear) 12.1/13.2 m
Support width OSS (front-rear) 5.9/7.6 m
Length x Width x Height 14550x2500x4000 mm
Concrete Pump Configuration .16 H
Material Cylinder Diameter-Stroke Length 230/2100 mm
Output (rod side) 160 m³/hr
Delivery Pressure (rod side) 85 bar
Strokes (rod side) 31
