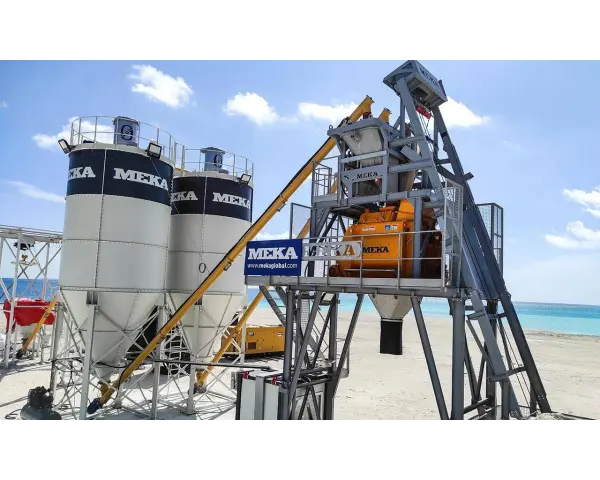

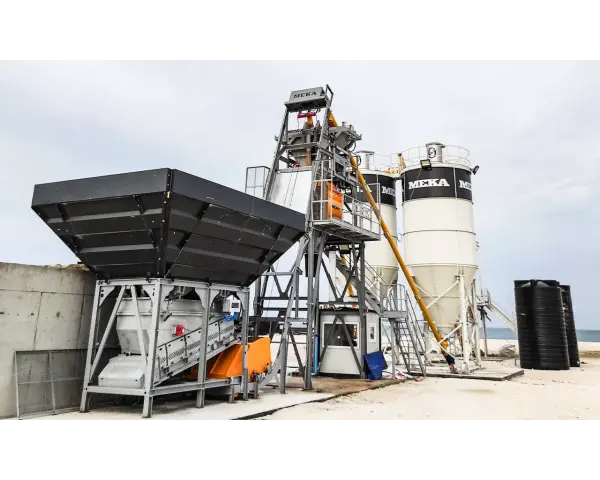

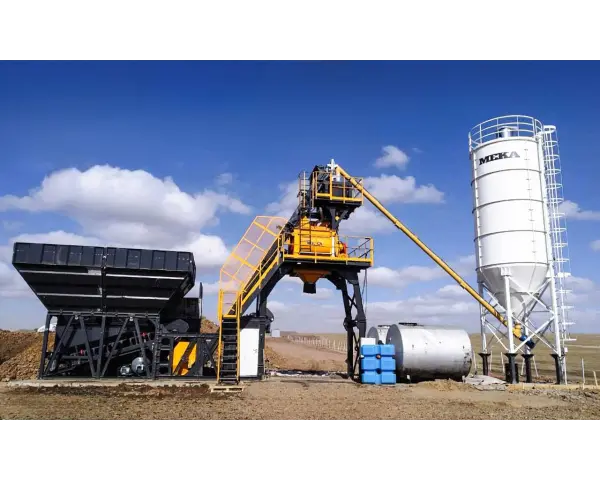

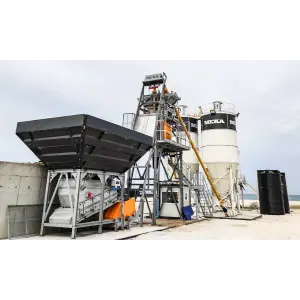

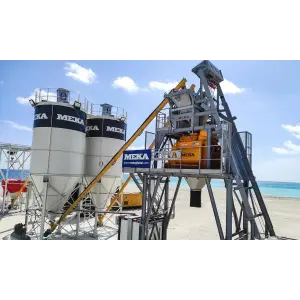

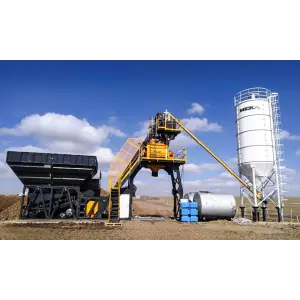

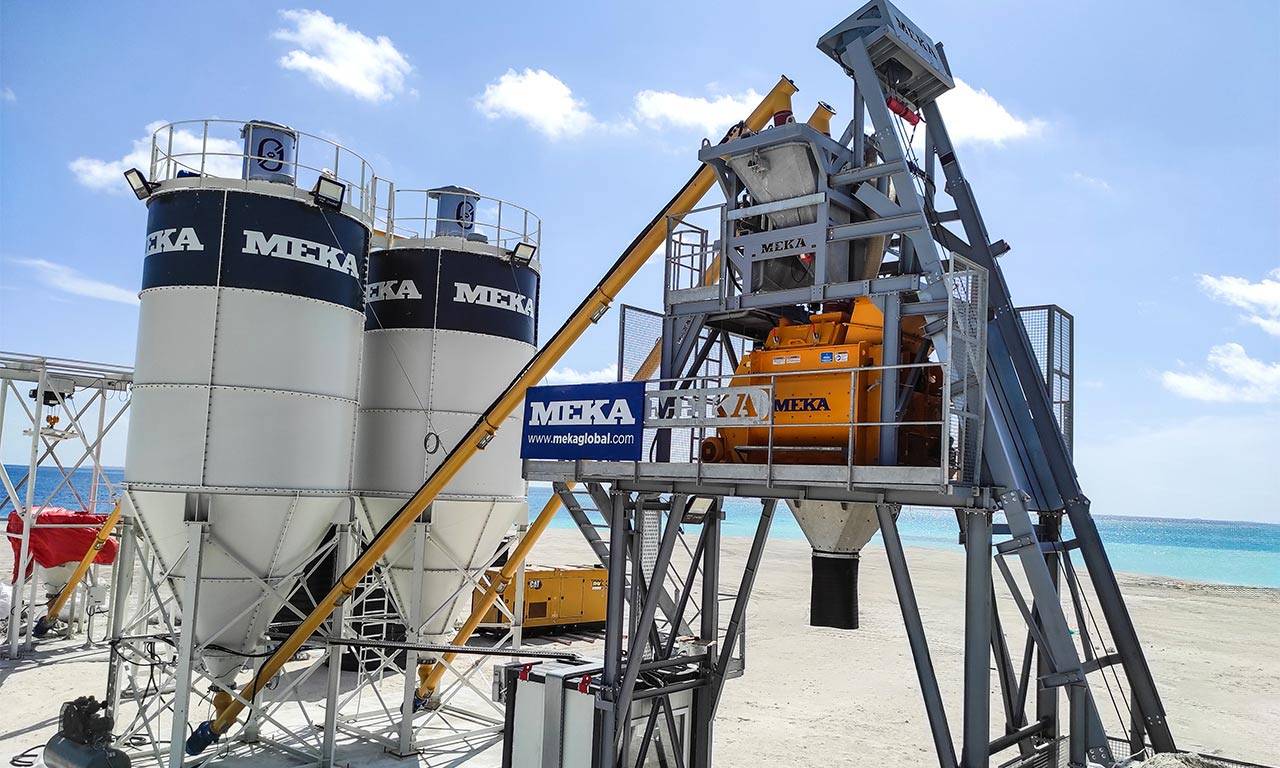

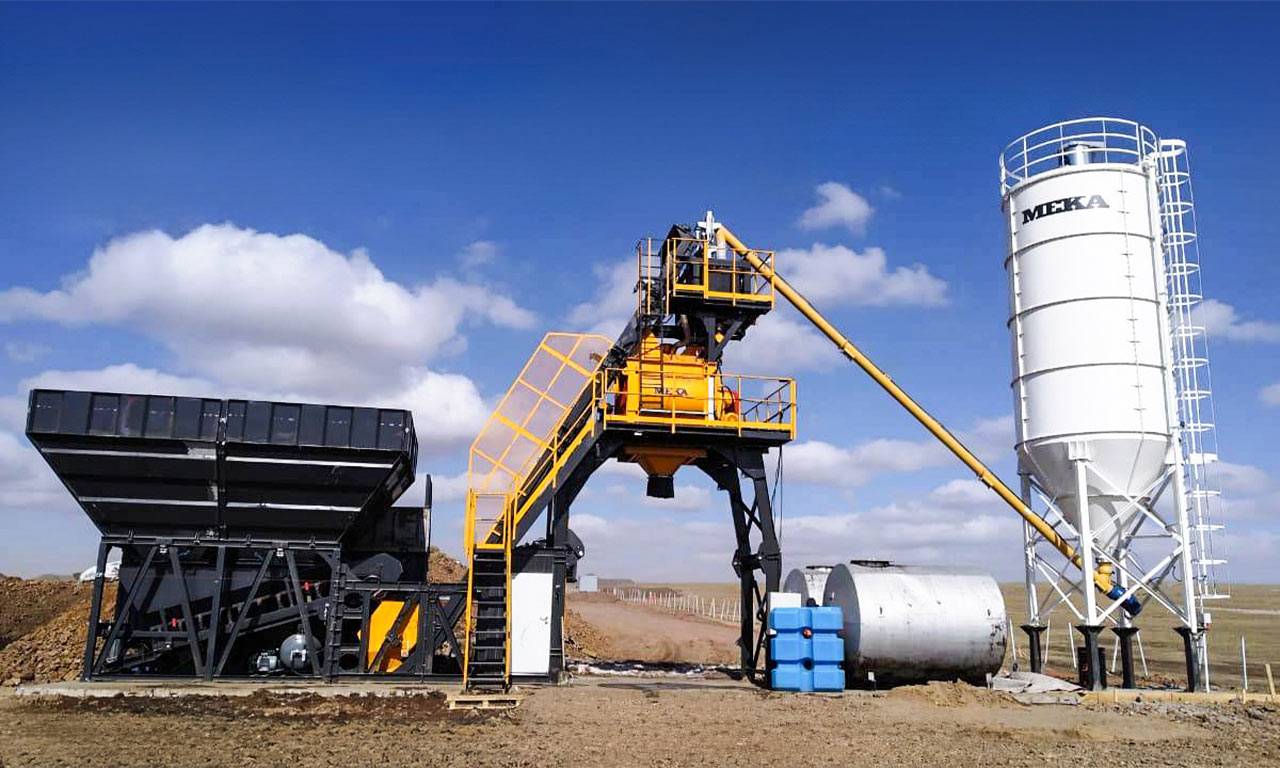

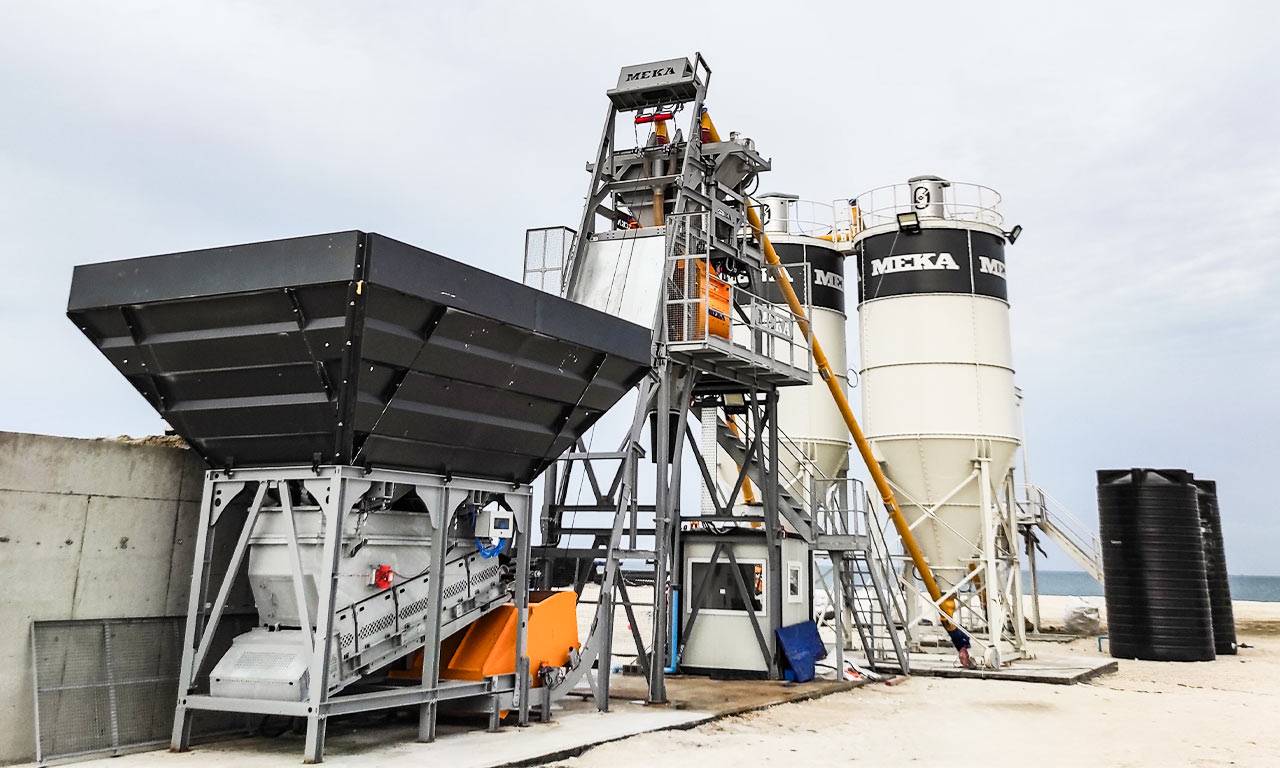

C60 S Bucket Type Compact Concrete Batching Plant, 60 m³/h production capacity, aggregate bucket system requires less space and can be installed on zero ground. Thanks to its compact structure, it is suitable for container transportation.
The C60 S Compact Concrete Batching Plant is designed to require minimal installation space, thanks to its bucket structure, and can be shipped using 40' open-top containers. Engineered for maximum efficiency and built with top-quality components, the C60 S is the ideal solution for medium-sized concrete production, particularly in tight spaces.
Equipped with a 1.0 m³ capacity MEKA twin-shaft mixer, the C60 S ensures uninterrupted production while keeping operating and maintenance costs low. It offers flexibility with two aggregate bunker options: 4x10 square type or 4x20 in-line type.
The C60 S can be installed directly at ground level without the need for special high concrete foundations. Pre-wired electricity, water, and pneumatic lines prepared at MEKA’s factories enable rapid installation and commissioning, allowing the plant to start producing concrete in no time.
|
Technical Specifications С60-S |
|
|
Compacted Concrete Output (Mixing time: 30 / 20 sec) |
60 m³/h |
|
Mixer Capacity (Compacted Concrete) |
1,0 m³ / batch |
|
Mixer Type |
Twin-shaft |
|
Mixer Motor Power |
2х 18,5 kW |
|
Aggregate Bins |
4x 20 m³ / IT (Inline Type) 4x 10 m³ / CT (Cross Type) |
|
Aggregate Feeding |
Ramp or Pre-feeding System |
|
Aggregate Transfer |
Skip Hoist |
|
Air Compressor |
Piston Type, 5.5 kW |
|
Cement Weighing Hopper |
700 kg |
|
Water Weighing Hopper |
250 kg |
|
Additive Weighing Hopper |
25 kg |
|
Cement Screw Conveyor |
Ø 219x13.000 mm |
