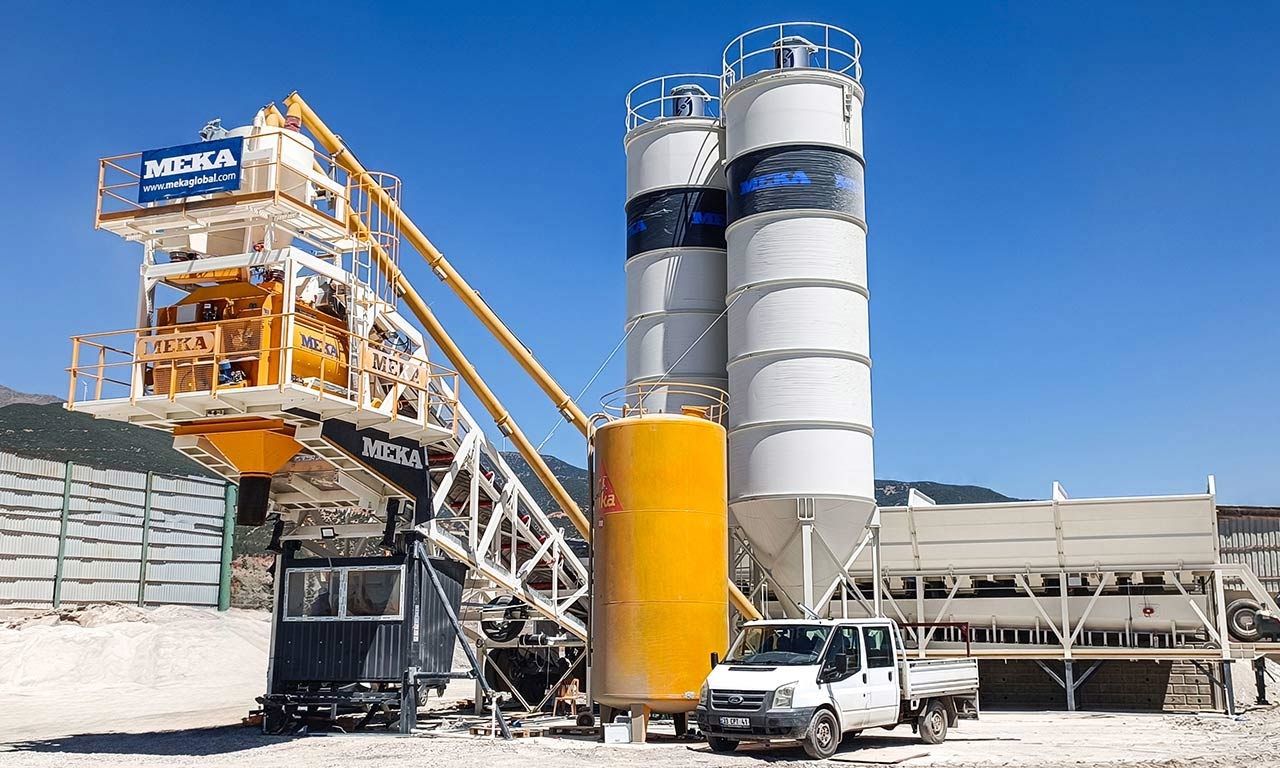

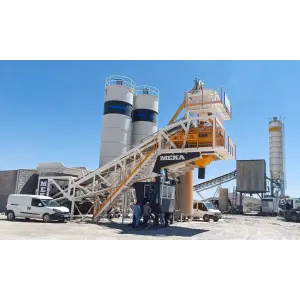

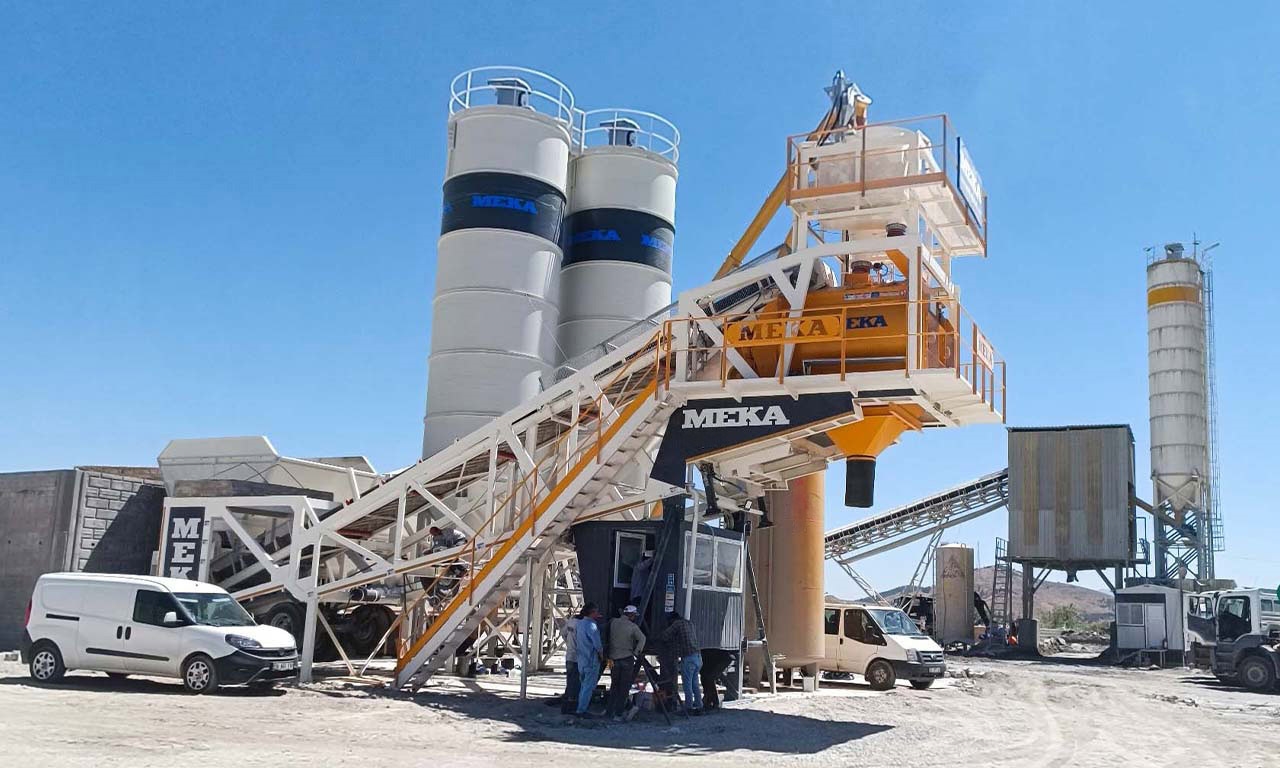

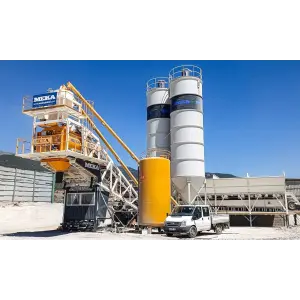

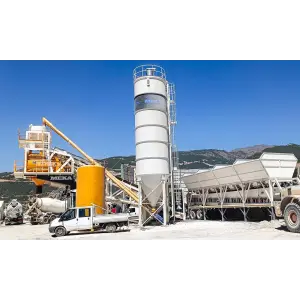

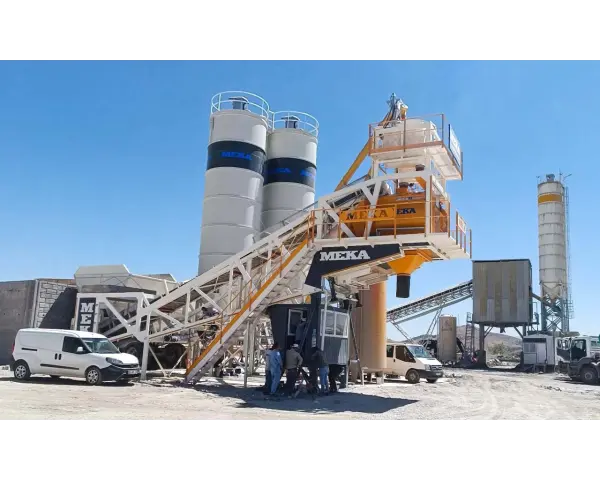

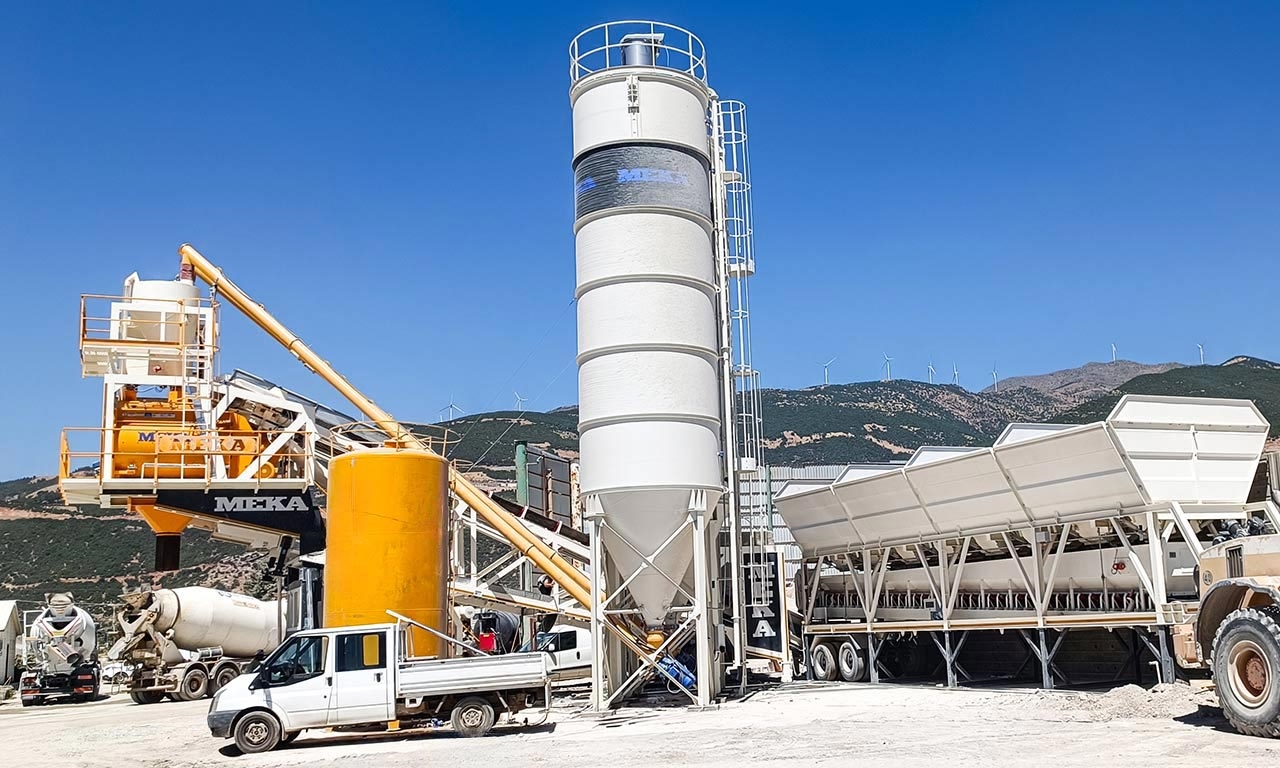

The M135 Mobile Concrete Batching Plant is essential for large construction projects, offering high production performance of 120 m³/h, along with easy and fast installation. Its low operating and maintenance costs make it a cost-effective choice for contractors.
Preferred for projects requiring high production performance, the M135 Mobile Concrete Batching Plant is equipped with a powerful 3.33 m³ capacity MEKA twin-shaft mixer.
The M135 offers 4x25 m³ in-line type mobile or stationary aggregate bins and can be installed on zero ground. Its robust and reliable chassis design ensures uninterrupted production, even in harsh conditions, and it can be set up on-site in a short time to begin concrete production.
The in-line type aggregate bunker and main unit are designed as two separate structures, allowing for shipment with two separate truck tractors. With its low operating and maintenance costs, the M135 delivers high production performance, making it a strong competitor in its class.
|
Technical Specifications M135 |
|
|
Compacted Concrete Output |
120 m³/h |
|
Mixer Capacity (Compacted Concrete) |
3,33 m³ / Cycle |
|
Mixer Type |
TS (Twin Shaft) |
|
Mixer Motor Power |
2x55 kW |
|
Aggregate Bins |
4x 25 m³ / IT (Inline Type) |
|
Aggregate Feeding |
Ramp or Pre-Feeding System |
|
Aggregate Transfer |
Belt |
|
Air Compressor |
Piston Type (7,5 kW) |
|
Cement Weighing Hopper |
1.750 kg |
|
Water Weighing Hopper |
1.000 kg |
|
Additive Weighing Hopper |
40 kg |
|
Cement Screw Conveyor |
Ø 273 x 15.000 mm |
