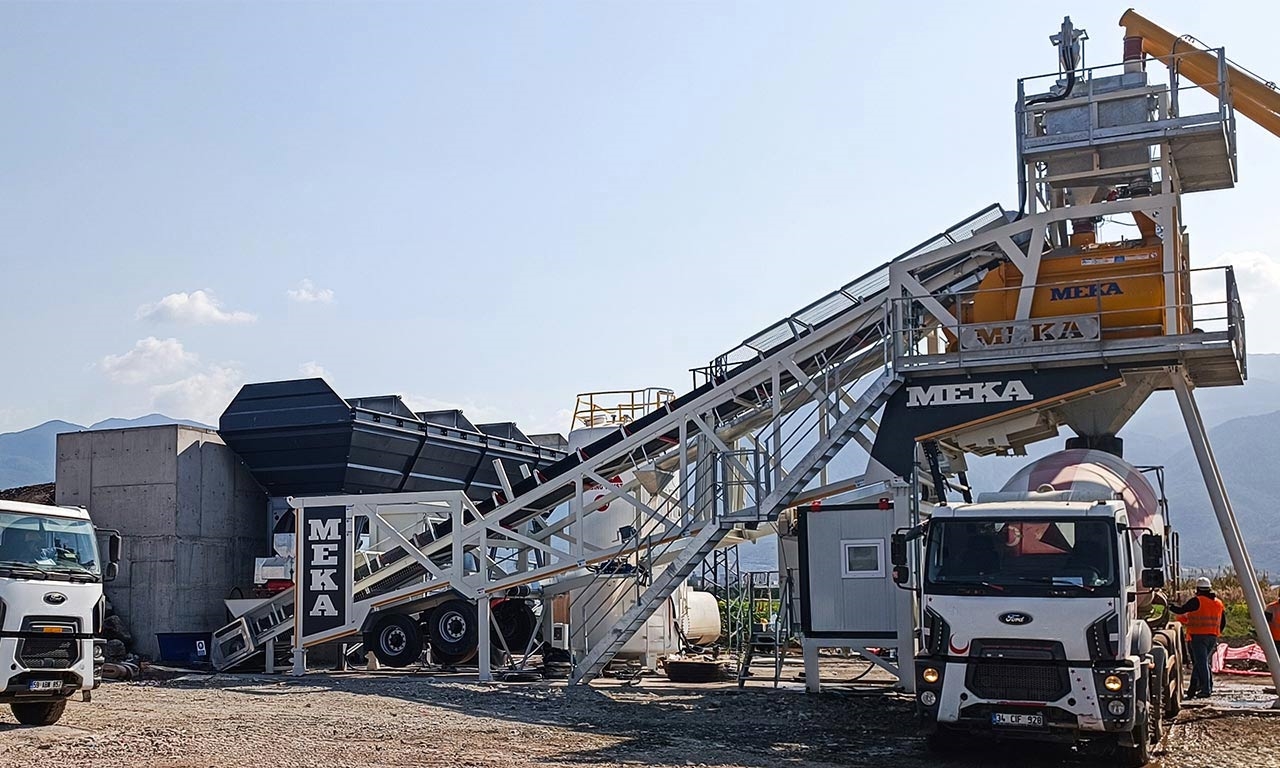

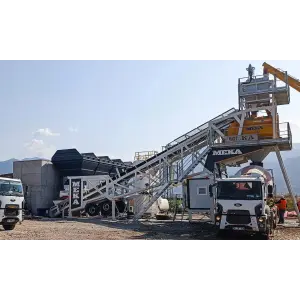

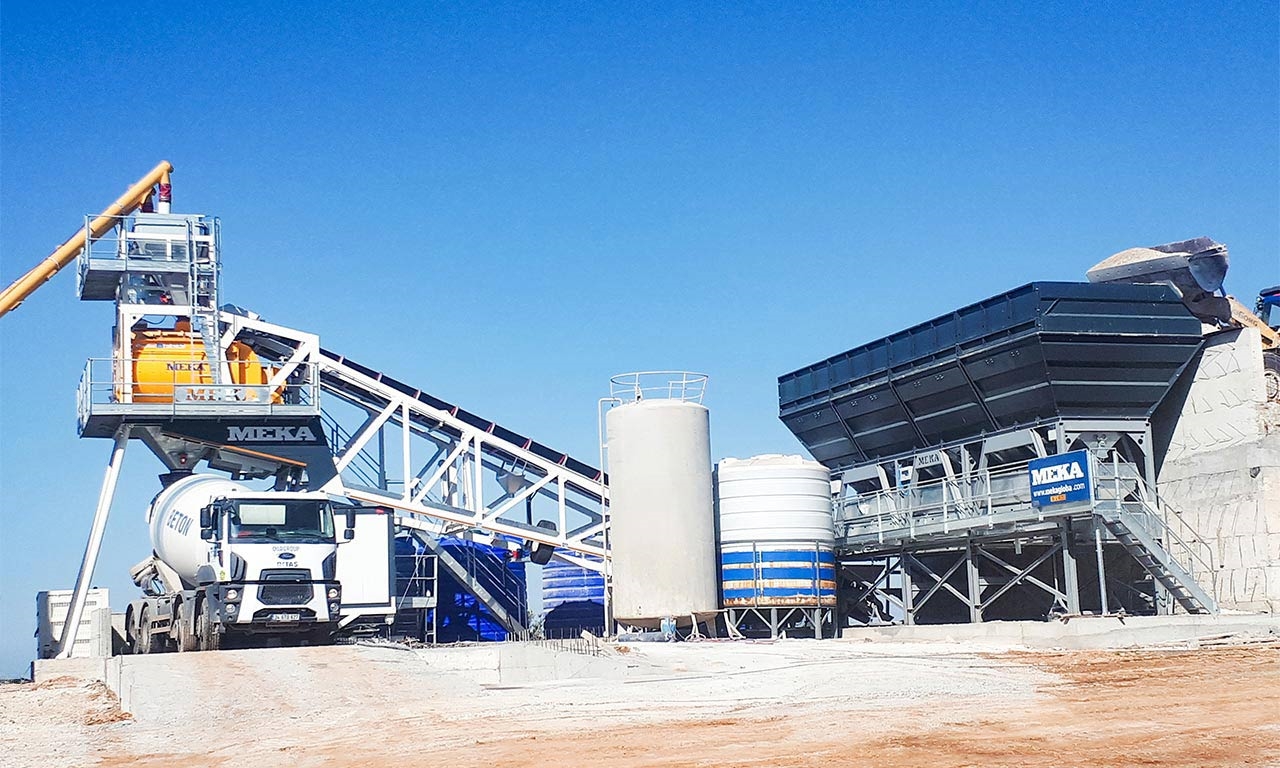

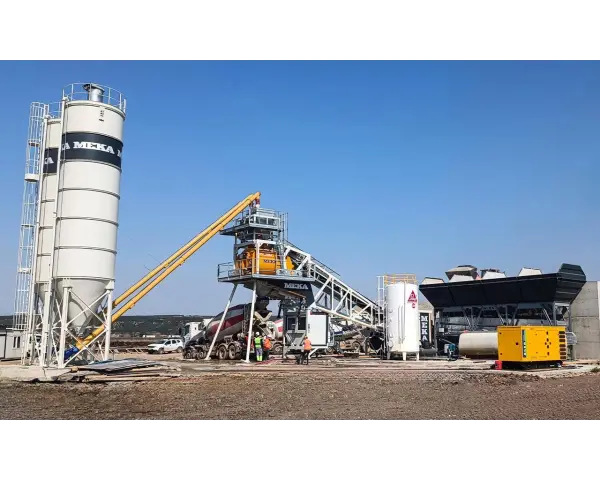

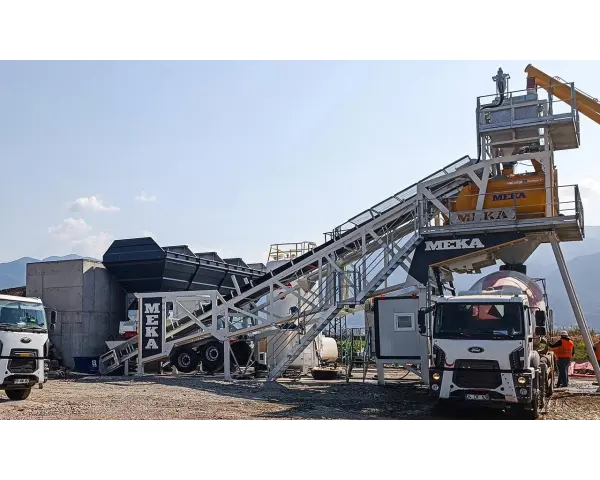

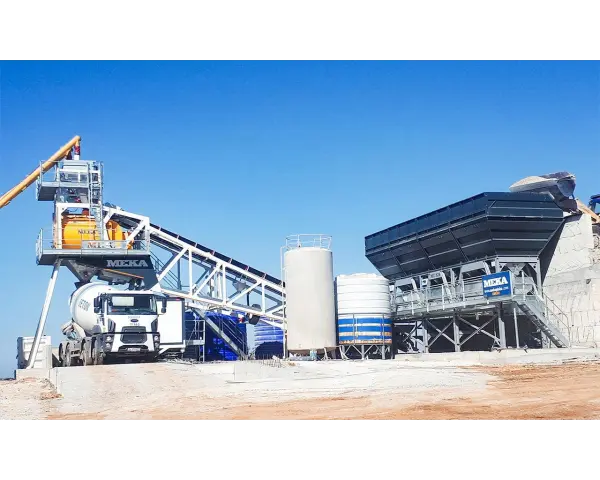

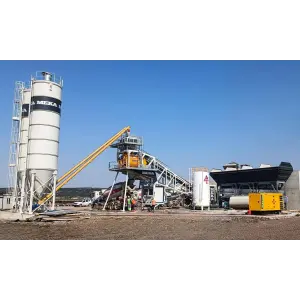

The M145 Mobile Concrete Batching Plant offers significant benefits to users in large and challenging construction projects, thanks to its high production capacity of 135 m³/hour and the advantage of easy and fast installation.
The M145 Mobile Concrete Batching Plant is equipped with a powerful 3.50 m³ capacity MEKA twin-shaft mixer and is ideal for projects requiring high production capacity. It is particularly preferred for the production of special and challenging concretes. The plant is designed with two separate structures: the in-line type aggregate bunker and the main unit, both of which can be shipped with two separate truck tractors.
The M145 comes with 4x25 m³ in-line type mobile aggregate bins, or alternatively, 4x25 m³ in-line type stationary aggregate bins, and can be installed on zero ground. Built with a robust and reliable chassis designed for harsh conditions, the M145 ensures uninterrupted production. It can be installed on a flat concrete floor in a short time and immediately begin concrete production, making it the perfect solution for mixing special concretes.
|
Technical Specifications M145 |
|
|
Compacted Concrete Output |
135 m³/h |
|
Mixer Capacity (Compacted Concrete) |
3,50 m³ / Cycle |
|
Mixer Type |
TS (Twin Shaft) |
|
Mixer Motor Power |
2x75 kW |
|
Aggregate Bins |
4x 25 m³ / IT (Inline Type) |
|
Aggregate Feeding |
Ramp or Pre-Feeding System |
|
Aggregate Transfer |
Belt |
|
Air Compressor |
Piston Type (7,5 kW) |
|
Cement Weighing Hopper |
1.750 kg |
|
Water Weighing Hopper |
1.000 kg |
|
Additive Weighing Hopper |
40 kg |
|
Cement Screw Conveyor |
Ø 273 x 15.000 mm |
