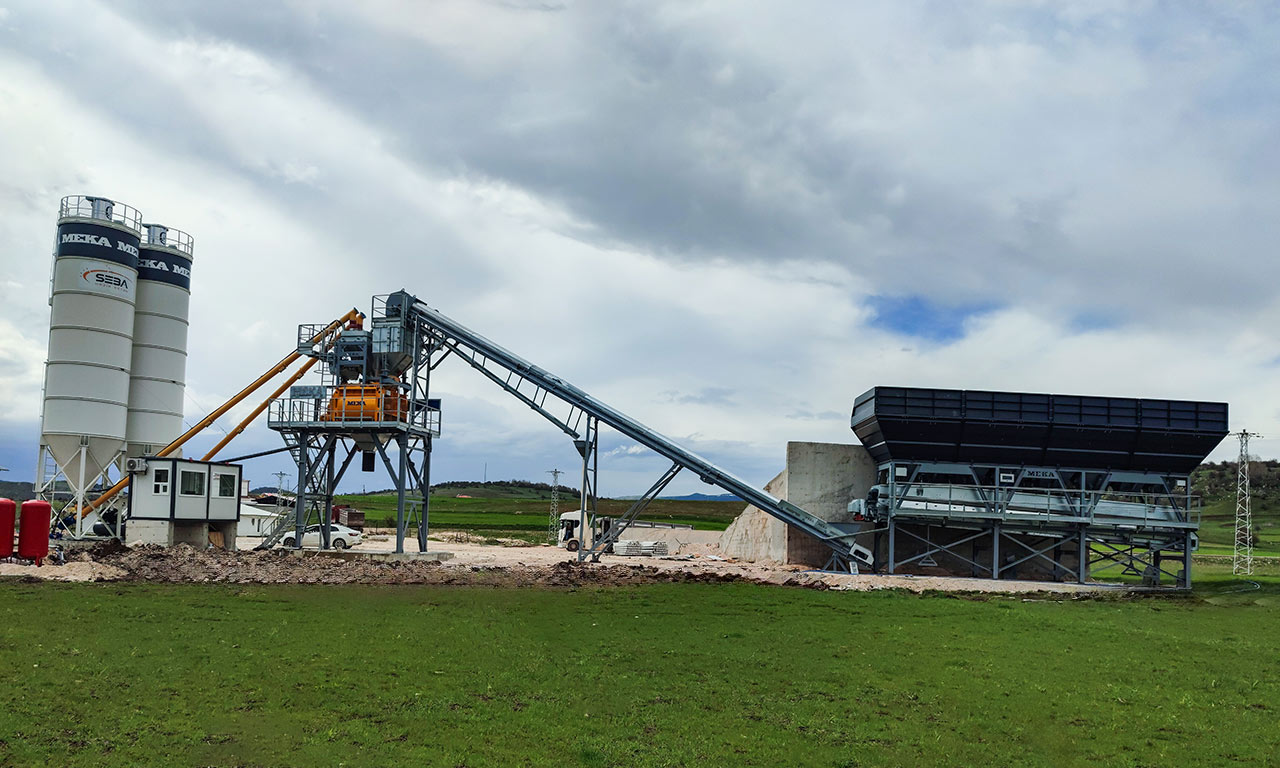

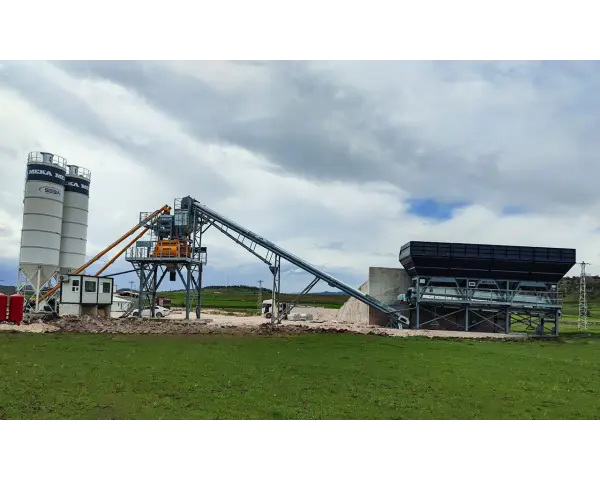

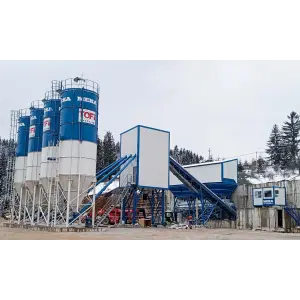

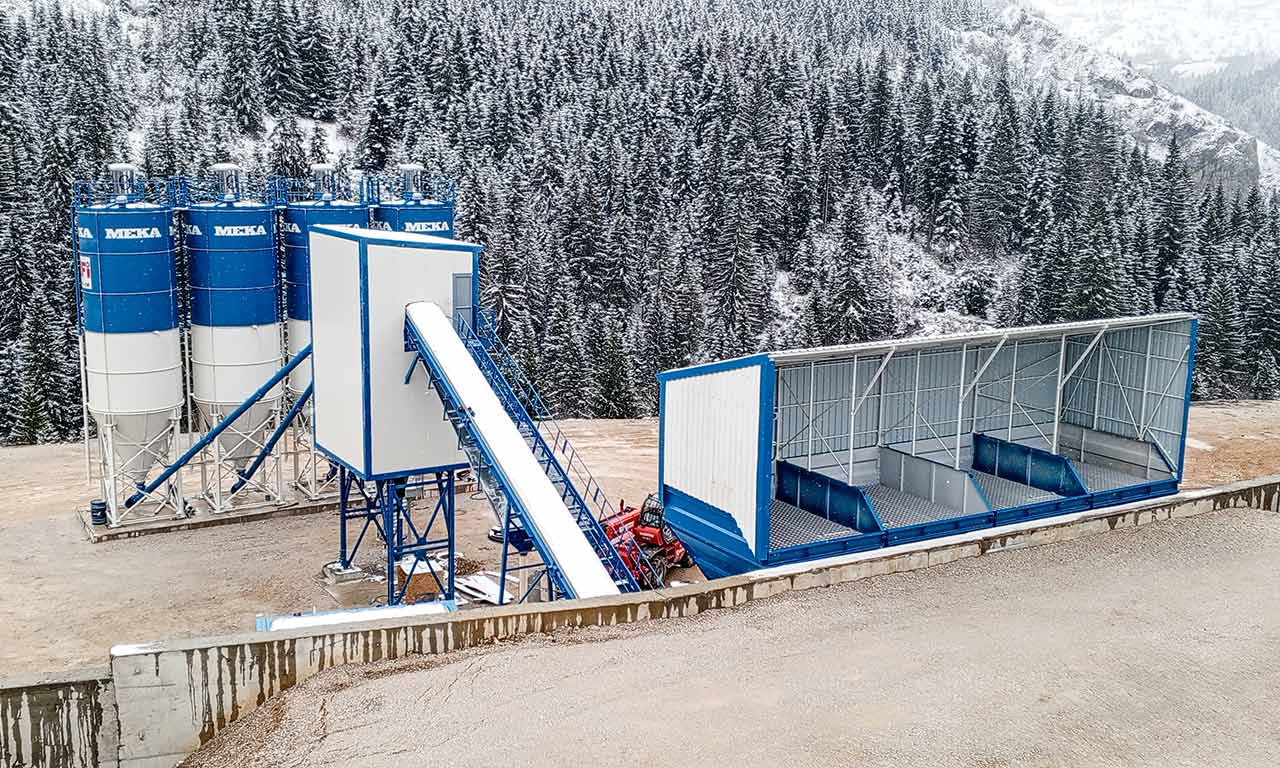

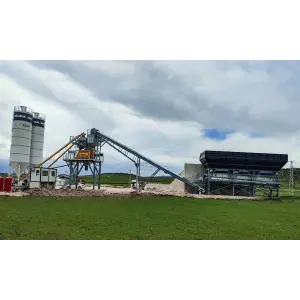

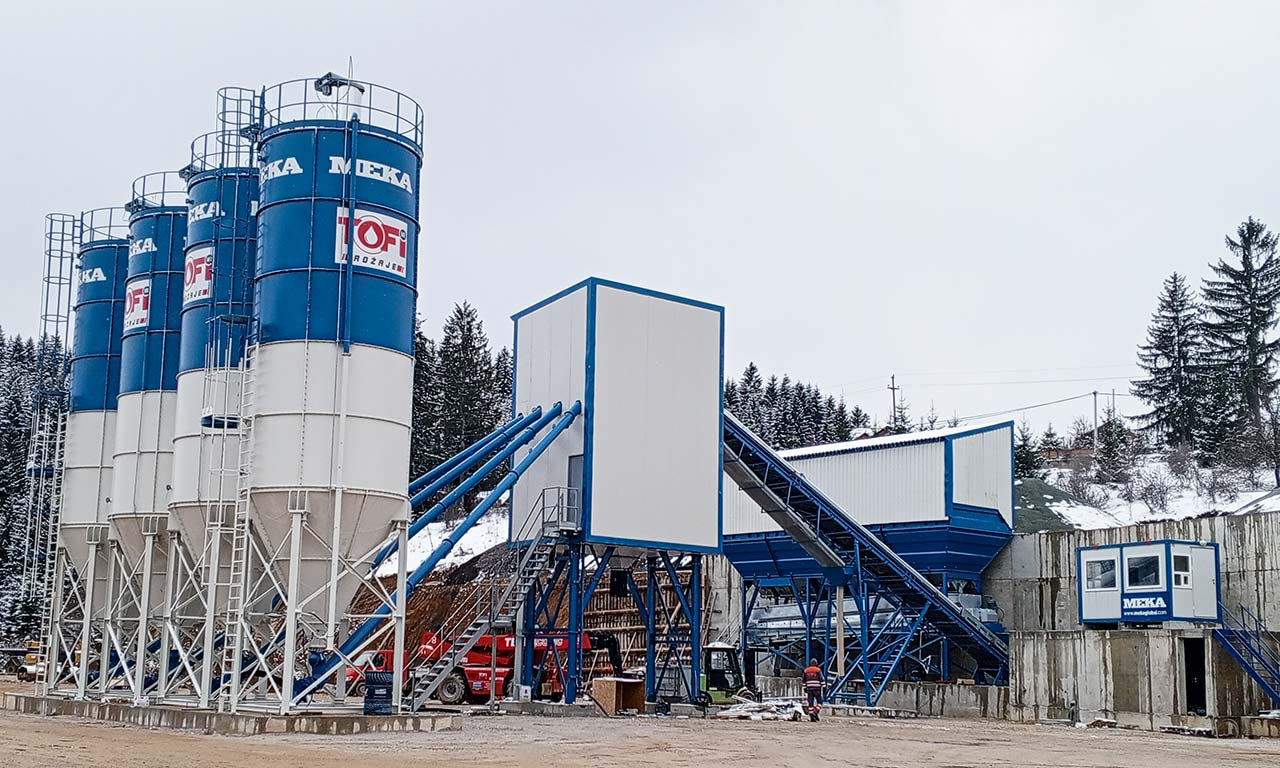

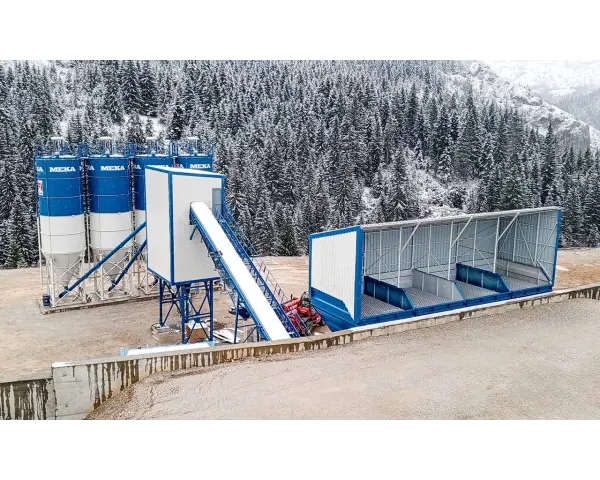

The K120 Stationary Concrete Batching Plant, designed for long-lasting reliability and high performance, meets all your production requirements, whether for ready-mixed concrete, RCC, or precast concrete, and adds significant power to your business.
The K120 Stationary Concrete Batching Plant is not only a producer of high-quality ready-mixed concrete but also a long-term investment, featuring hot-dip galvanized weighing units, hoppers, and plant components for enhanced durability. Whether for ready-mixed concrete, roller compacted concrete (RCC), or precast concrete, the K120 delivers high productivity and provides a significant business advantage with its 2.25 m³ capacity MEKA twin-shaft mixer.
Specifically designed to meet the demands of mass concrete production, the standard aggregate waiting hopper on the K120 maximizes productivity and profitability for ready-mixed concrete producers or large project contractors.
|
Technical Specifications K120 |
|
|
Compacted Concrete Output (Mixing Time : 30 seconds/ 20 seconds) |
100-110 m³/h |
|
Mixer Capacity (Compacted Concrete) |
2,25 m³ / Cycle |
|
Mixer Type |
TS (Twin Shaft) |
|
Mixer Motor Power |
2x 37 kW |
|
Aggregate Bins |
4x 25 m³ / IT (Inline Type) 4x 35 m³ / IT (Inline Type) |
|
Aggregate Feeding |
Ramp or Pre-Feeding System |
|
Aggregate Transfer |
Belt |
|
Air Compressor |
Piston Type (7,5 kW) |
|
Cement Weighing Hopper |
1.250 kg |
|
Water Weighing Hopper |
440 kg |
|
Additive Weighing Hopper |
25 kg |
|
Cement Screw Conveyor |
Ø 273 x 15.000 mm |
