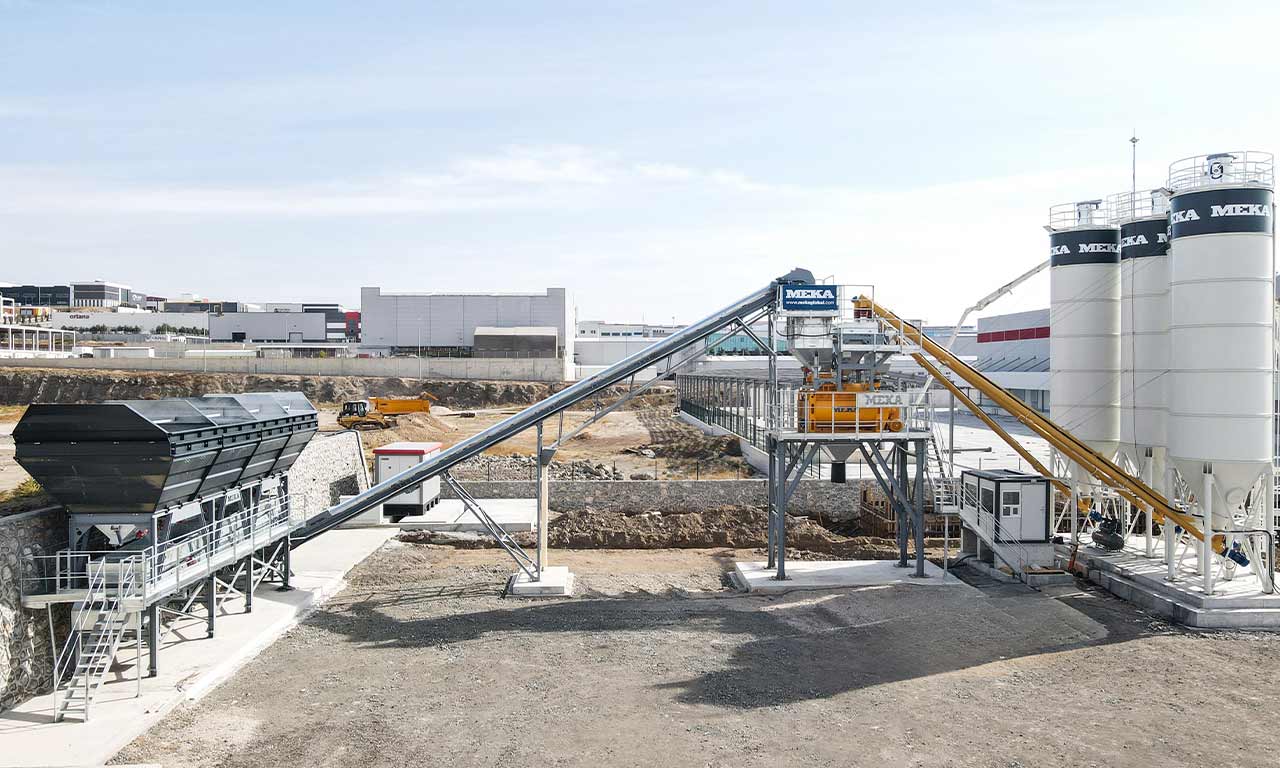

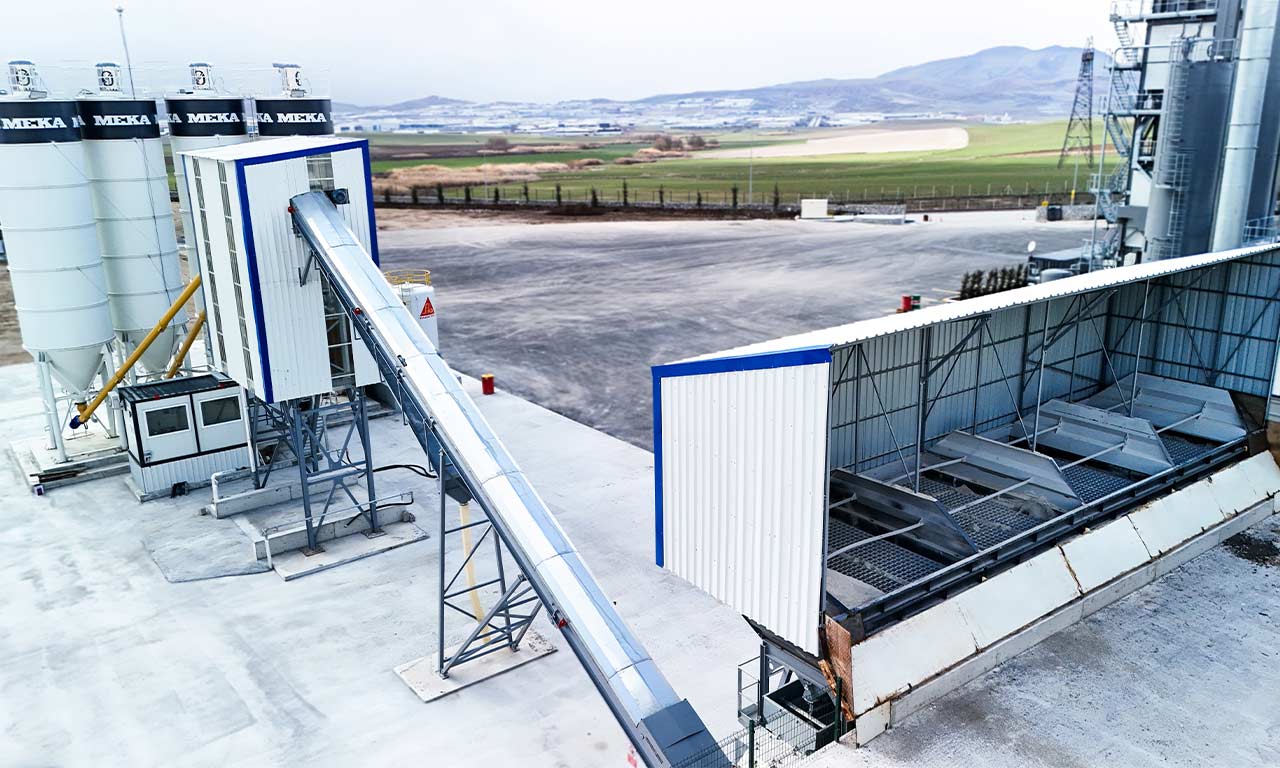

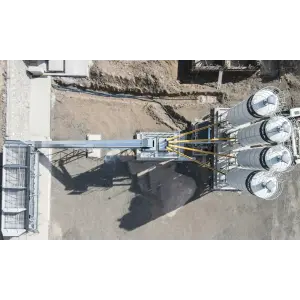

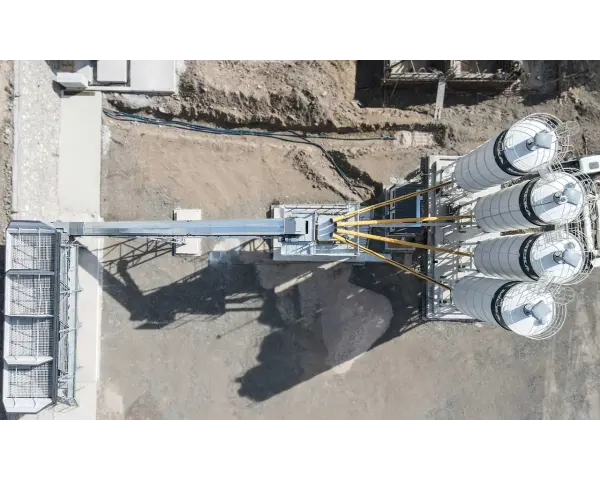

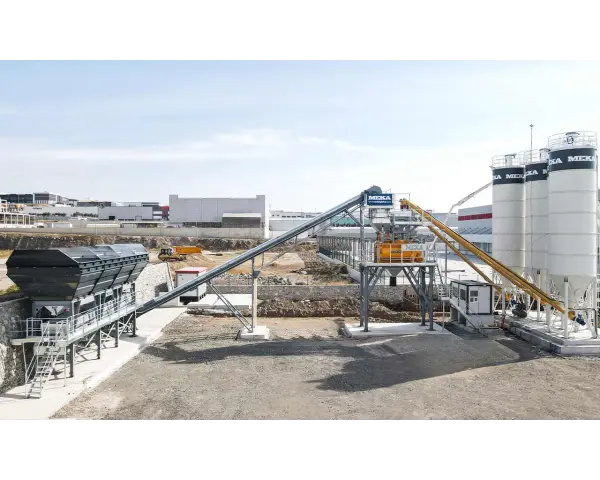

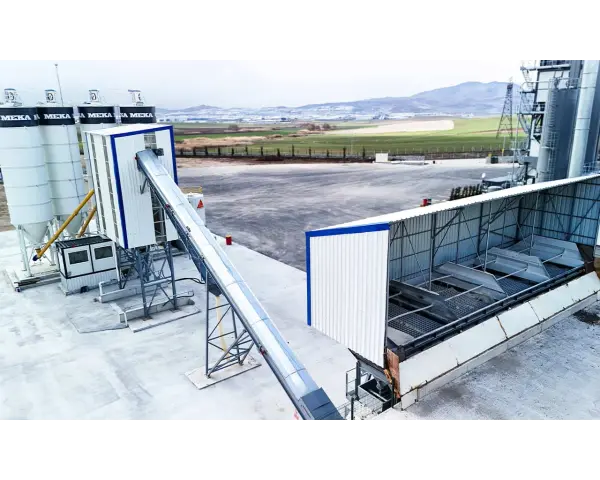

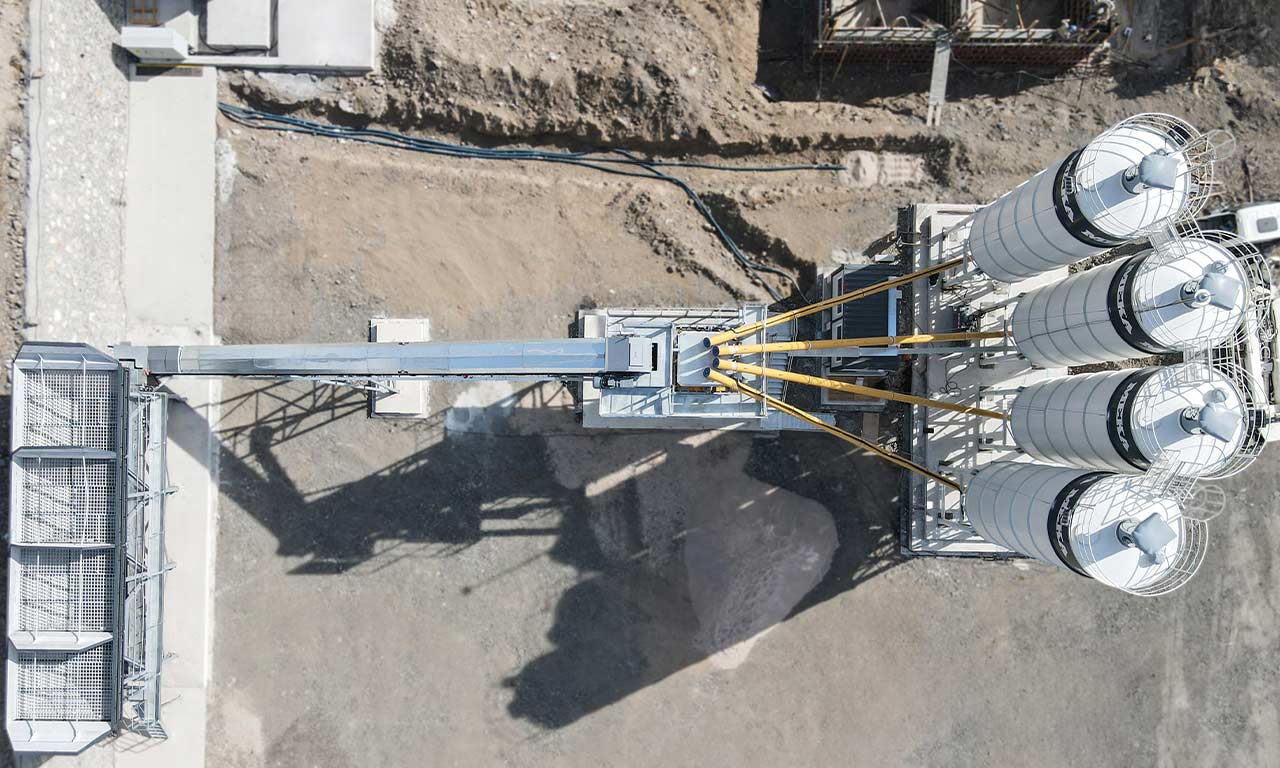

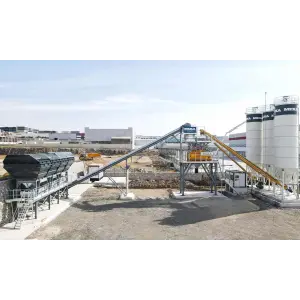

The K135, a powerful representative of our stationary concrete batching plant range, sets industry standards with its renewed design and enhanced productivity features, further boosting your operational efficiency.
The K135 Stationary Concrete Batching Plant, known for its high capacity and continuous ready-mixed concrete production performance, is the top choice for those who prioritize both capacity and efficiency. Its redesigned structure allows operation in a more compact installation area.
Equipped with a 3.0 m³ capacity MEKA twin-shaft mixer, the K135 is a durable investment, featuring hot-dip galvanized weighing units, bunkers, and plant components for enhanced longevity and reliability.
|
Technical Specifications K135 |
|
|
Compacted Concrete Output (Mixing Time : 30 seconds/ 20 seconds) |
112-126 m³/h |
|
Mixer Capacity (Compacted Concrete) |
3,0 m³ / Cycle |
|
Mixer Type |
TS (Twin Shaft) |
|
Mixer Motor Power |
2x55 kW |
|
Aggregate Bins |
4x 25 m³ / IT (Inline Type) 4x 35 m³ / IT (Inline Type) |
|
Aggregate Feeding |
Ramp or Pre-Feeding System |
|
Aggregate Transfer |
Belt |
|
Air Compressor |
Piston Type (7,5 kW) |
|
Cement Weighing Hopper |
1.700 kg |
|
Water Weighing Hopper |
660 kg |
|
Additive Weighing Hopper |
40 kg |
|
Cement Screw Conveyor |
Ø 273 x 15.000 mm |
