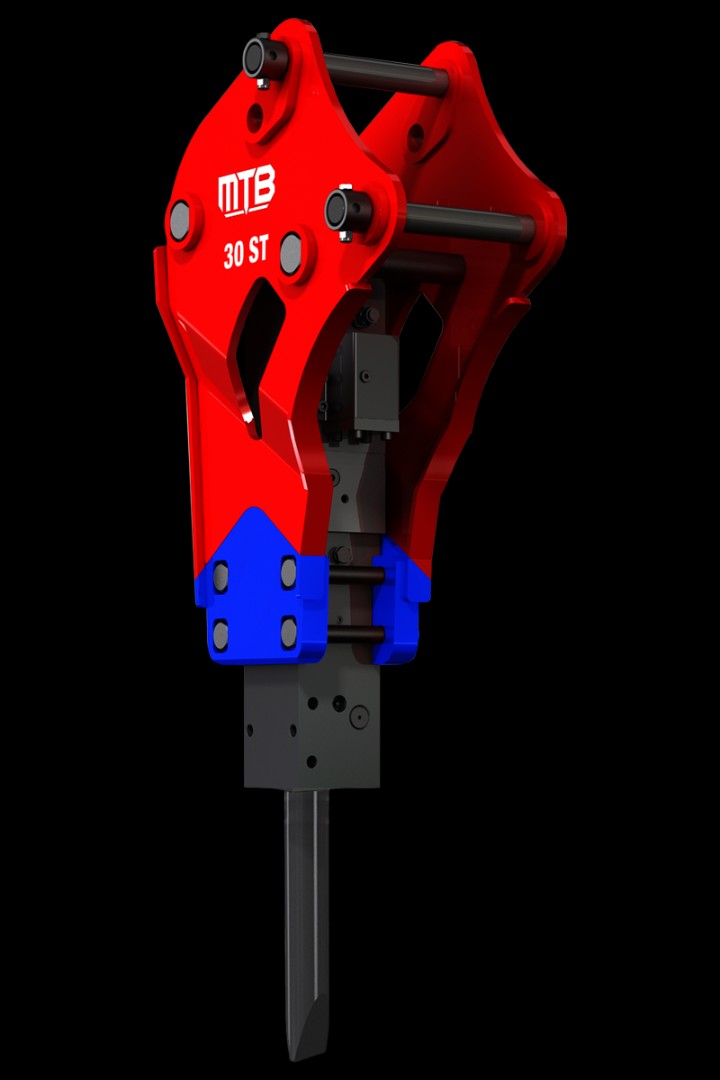

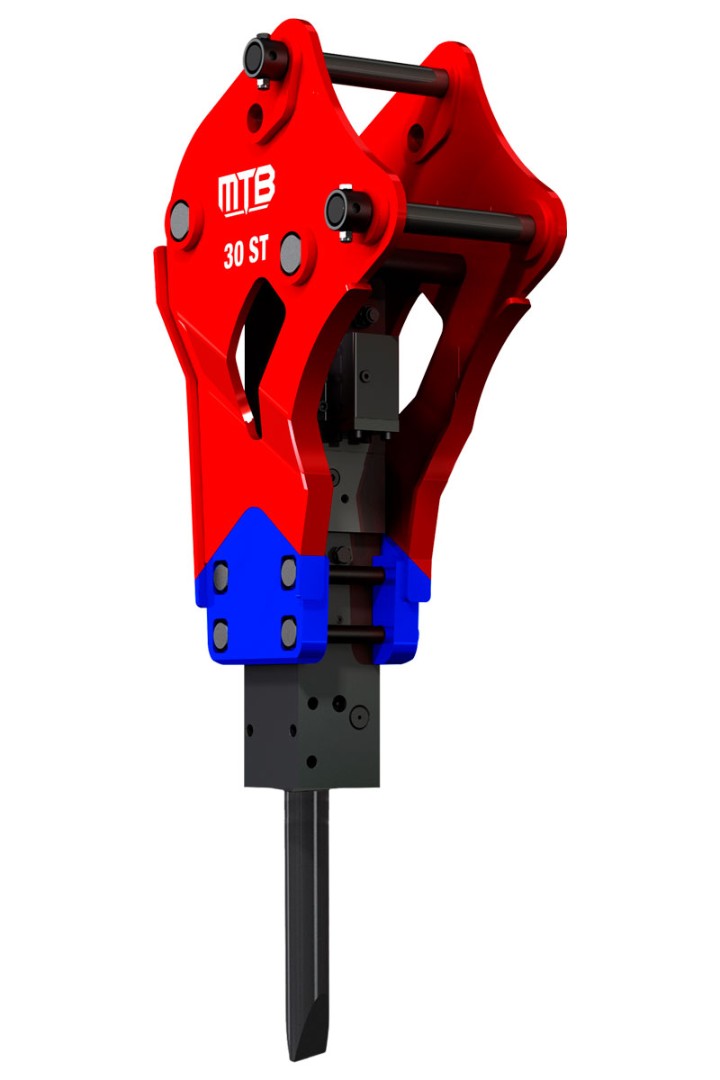

| MTB 30 (Side Connection) Standard Gas Crushers | |||
|---|---|---|---|
| Operating Weight (a) | kg | 330 | |
| lb | 727 | ||
| Oil Flow | l/min | 30 - 65 | |
| gal/min | 7,9 - 17,2 | ||
| Impact Rate (b) | bpm | 390-1000 | |
| Operating Pressure (c) | bar | 120 - 125 | |
| psi | 1740 - 1813 | ||
| Input Power Min/Max (d) | kW | 6 - 13,5 | |
| hp | 8 - 18,1 | ||
| Relief Pressure | bar | 170 | |
| psi | 2465 | ||
| Back Pressure Max | bar | 12 | |
| psi | 174 | ||
| Tool Diameter | mm | 70 | |
| inch | 2,75 | ||
| Noise Level (e) | LWA (dB) | 129 | |
| Skid Steer Carrier Weight (f) |
t | 2,5 - 4,2 | |
| 1000 Lb | 5510 - 9260 | ||
| Mini Excavator Carrier Weight (f) |
t | 4 - 7 | |
| 1000 bb | 8820 - 15430 | ||
| (a) Approximately includes breaker, bracket, standard tip and hose weights; total weight may vary depending on the brand and model of the work machines. |
| (b) Actual impact frequency depends on the oil flow, oil viscosity, temperature and the material to be broken. |
| (c) Actual pressure depends on the oil flow, oil viscosity, temperature, material to be broken and the return pressure. |
| (d) Input power directly effects fuel consumption. Low input power (kW) requirement means low fuel consumption. |
| (e) Guaranteed sound power testing results according to directive 2000/14/EC (Guaranteed dB(A)=Measured Value +3 dB). |
| (f) If the carrier machine is out of the optimum range, ask the carrier machine manufacturer for allowed attachment weight. |
