Putzmeister BSA 1408 E
Putzmeister
Manufacturer: Putzmeister

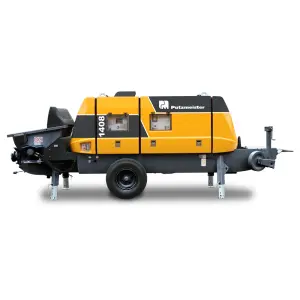

Reliable Low-Emission Stationary Concrete Pump with Electric Drive for Tunnel Jobs and Precast Factories The Putzmeister BSA 1408 E is a reliable, all-round concrete trailer pump, powered by a 110 kW engine for medium performance ranges. Equipped with the sophisticated free-flow hydraulics (FFH) control…

Reliable Low-Emission Stationary Concrete Pump with Electric Drive for Tunnel Jobs and Precast Factories The Putzmeister BSA 1408 E is a reliable, all-round concrete trailer pump, powered by a 110 kW engine for medium performance ranges. Equipped with the sophisticated free-flow hydraulics (FFH) control technology, it can be mounted on railway chassis if required, and is ideal for tunnel construction and precast factory construction.
Key Features
  • Quiet
  • High-performance
  • Electric driven, no CO² Emission
General Information
Output (rod side) 79 m³/hr
Output (piston side) 53 m³/hr
Delivery Pressure (rod side) 71 bar
Delivery Pressure (piston side) 106 bar
Strokes (rod side) 30
Strokes (piston side) 20
Engine Power 110 kW
Material Cylinder Diameter-Stroke Length 200/1400 mm
Outlet Diameter 125 mm
Length x Width x Height 5745 x 2021 x 2146 mm
Weight 4600 kg
Trailer Type F8
