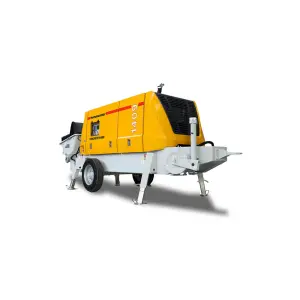

Putzmeister BSA 1409 D
Putzmeister
Manufacturer: Putzmeister

High Strength All-Round Stationary Concrete Pump with a 140 kW Engine The Putzmeister BSA 1409 D is an all-round, high strength stationary concrete pump, equipped with a powerful 140 kW 6-cylinder Deutz diesel engine (Stage 3A). With a maximum capacity of upto 97 cubic meters per hour, this concrete…

High Strength All-Round Stationary Concrete Pump with a 140 kW Engine The Putzmeister BSA 1409 D is an all-round, high strength stationary concrete pump, equipped with a powerful 140 kW 6-cylinder Deutz diesel engine (Stage 3A). With a maximum capacity of upto 97 cubic meters per hour, this concrete pump is ideal for medium distance pumping and in civil construction applications. The BSA 1409 D is for countries outside of Europe and USA. The equivalent for Europe and USA is the BSA 1409 D5.
Key Features
  • Complete overview of all operating data on Ergonic Graphic Display (EGD)
  • Robust and easy-to-clean glass fiber reinforced hood
  • High availability thanks to high-quality, wear resistant components with long service life
  • Fuel-economic, automatic speed draw down on pump stop
  • CE mark
  • Good accessibility for maintenance and service
General Information
Output (rod side) 97 m³/hr
Output (piston side) 67 m³/hr
Delivery Pressure (rod side) 71 bar
Delivery Pressure (piston side) 106 bar
Strokes (rod side) 37
Strokes (piston side) 25
Engine Power 140 kW
Material Cylinder Diameter-Stroke Length 200/1400 mm
Outlet Diameter 125 mm
Length x Width x Height 5750 x 2021 x 2380 mm
Weight 4500 kg
Trailer Type F8
